Removing Dashboard Insert At The Bottom

  1. Unscrew and remove the fastening screws -6-  .

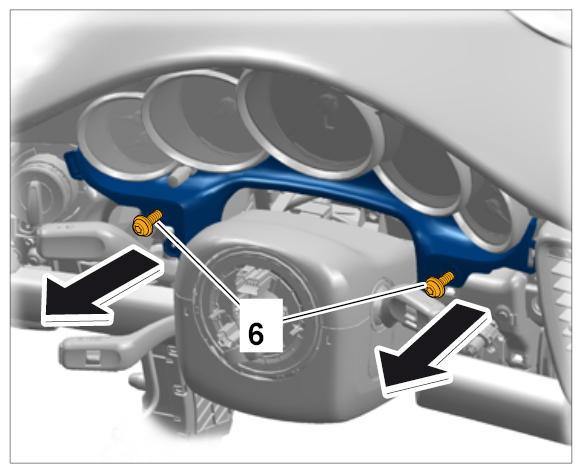

    Fig 1: Removing Dashboard Insert Fastening Screws (Bottom)
    G09813670Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip the dashboard insert at the bottom at the clips -7-  .
  3. Remove the dashboard insert by pulling it inwards

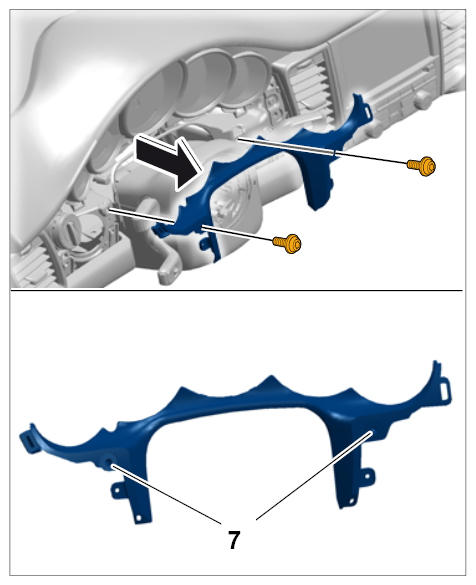

    Fig 2: Removing Dashboard Insert (Bottom)
    G09813671Courtesy of PORSCHE CARS NORTH AMERICA, INC.
