Technical Values: Overview
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

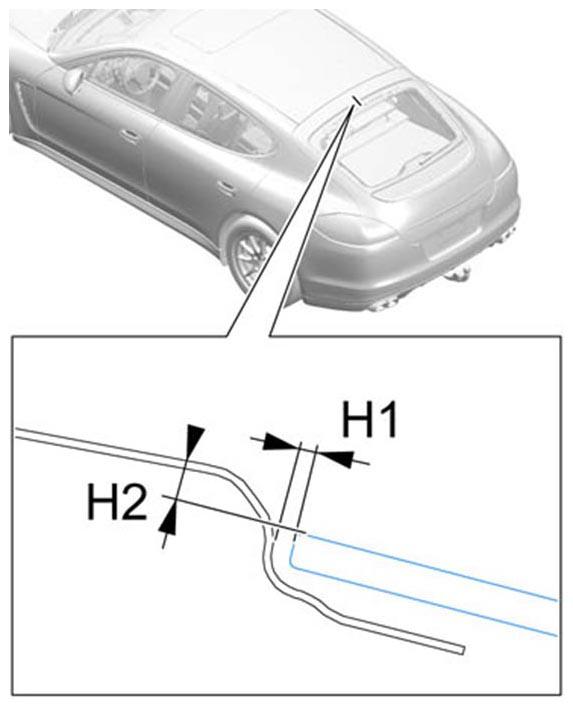

| Rear spoiler to rear window (H1) | Gap dimension | 3 mm | +0.5 mm | -0.5 mm | |
|
Gap dimension |
|||||
| Rear spoiler to rear window (H2) | Gap dimension | 6 mm | |||
|
Gap dimension |
|||||

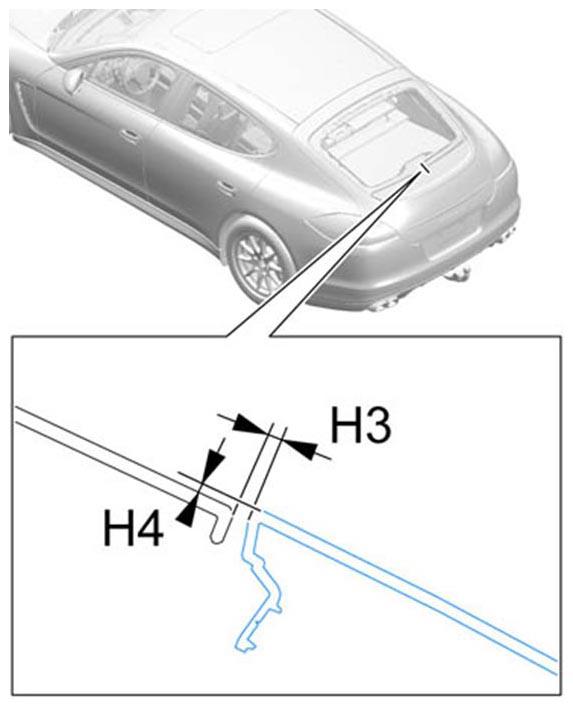

| Rear spoiler to rear window (H3) | Gap dimension | 4 mm | +1 mm | -0.5 mm | |
| Gap dimension | |||||
| Rear spoiler to rear window (H4) | Gap dimension | 3 mm | +1 mm | -1 mm | |
|
Gap dimension |
|||||

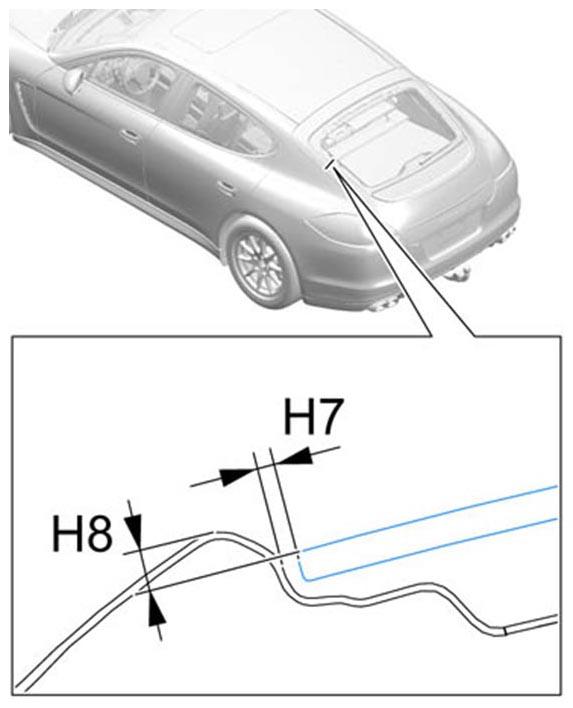

| Rear spoiler to rear window (H7) | Gap dimension | 3 mm | +0.5 mm | -0.5 mm | |
| Gap dimension | |||||
| Rear spoiler to rear window (H8) | Gap dimension | 9 mm | +0.5 mm | -1.5 mm | |
|
Gap dimension |
|||||
