Installing Switch For Front Power Windows

  1. Position the switch and push it in until the clips engage securely -arrow-  .

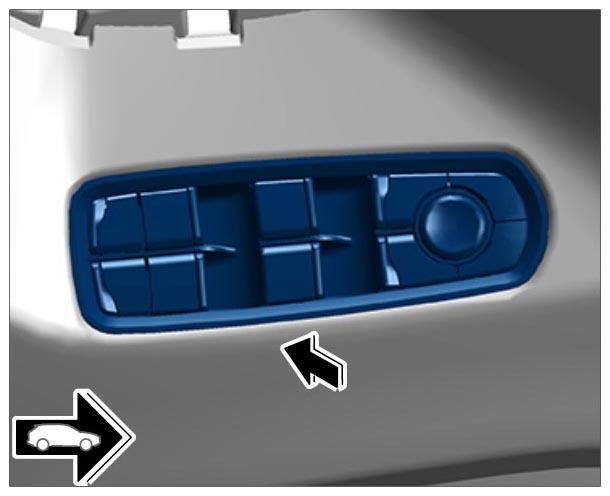

    Fig 1: Pushing Switch
    G09811039Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Make sure that all the clips engage securely -arrows-  .

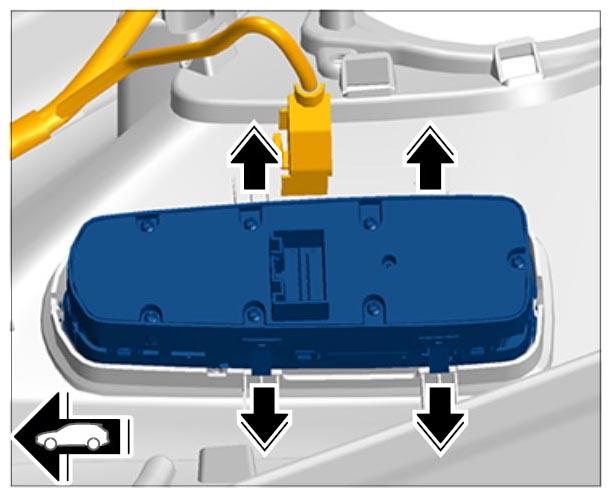

    Fig 2: Engaging Clips
    G09811040Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Plug in electric connector on the switch -arrow-  until it engages securely.

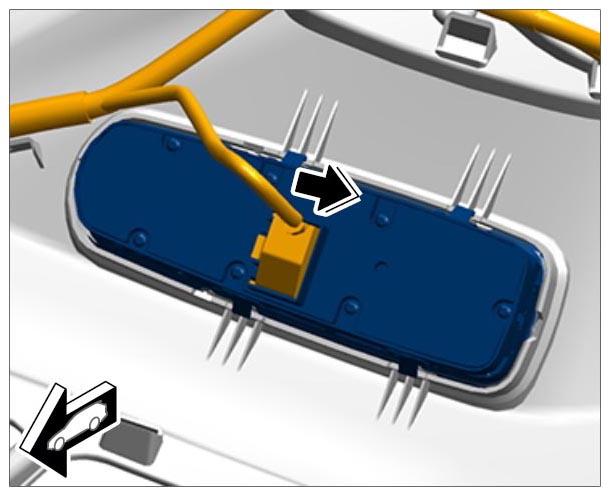

    Fig 3: Connecting Electric Connector
    G09811041Courtesy of PORSCHE CARS NORTH AMERICA, INC.
