Installing Front Window Lifter (Cable)

Grease guide rail (000.043.203.37). → GREASE
Position the front window lifter (cable) on the door sub-frame.
Engage the driver on the guide rail.
1. 3.1. Attach the driver to the guide rail -arrow- .

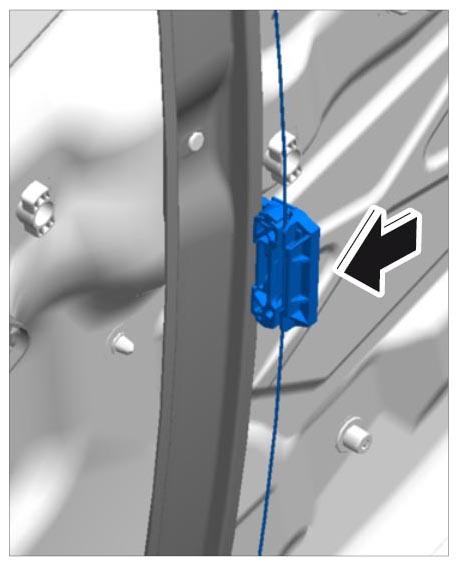

  Fig 1: Attaching Driver To Guide Rail
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Engage the driver on the guide rail -arrow- .

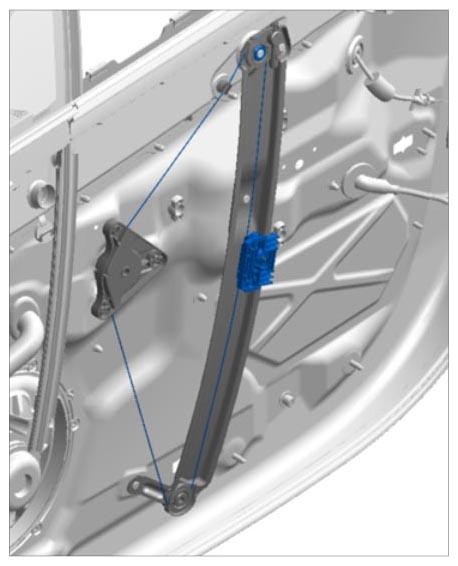

  Fig 2: Engaging Driver On Guide Rail
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the cable on the top roller.
1. 4.1. Turn the top roller to the position shown.

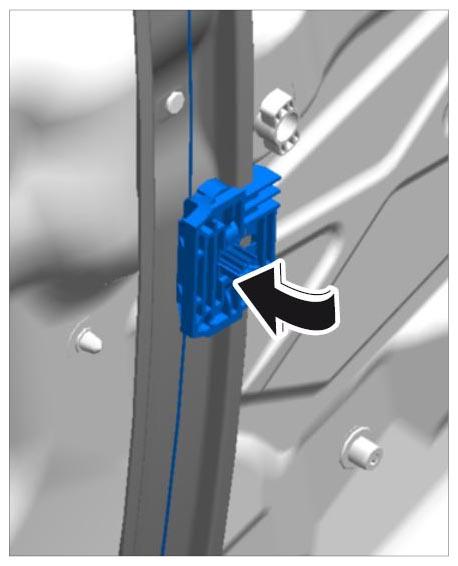

  Fig 3: Turning Top Roller
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Fit the cable on the top roller -arrow- .

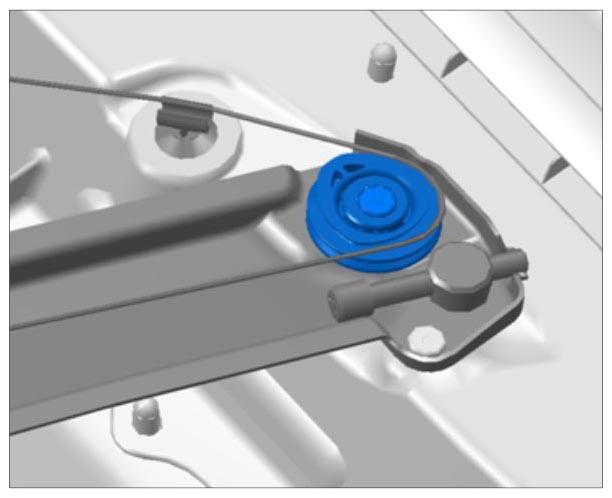

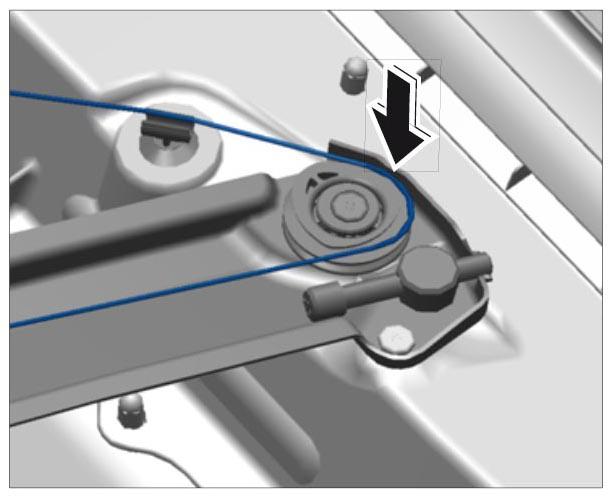

  Fig 4: Guiding Cable Onto Top Roller
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

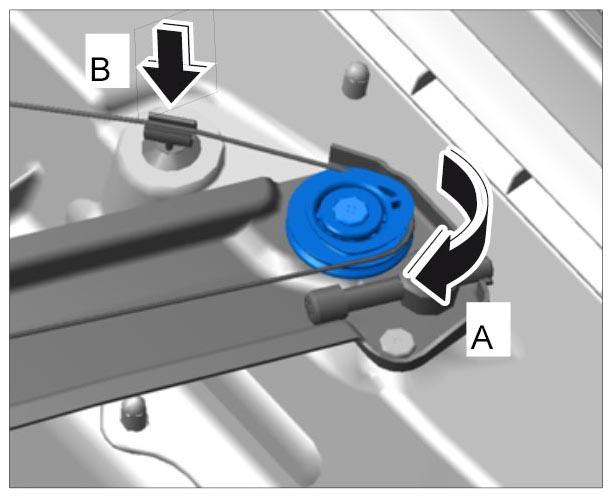

3. 4.3. Turn the top roller clockwise -arrow A- and guide the cable onto the top roller.
4. 4.4. Insert the cable into the guide -arrow B- .
Fit the cable on the bottom roller.
1. 5.1. Move the driver into the center of the guide rail.

  Fig 6: Moving Driver Into Centre Of Guide Rail
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Turn the bottom roller to the position shown and fit the cable.

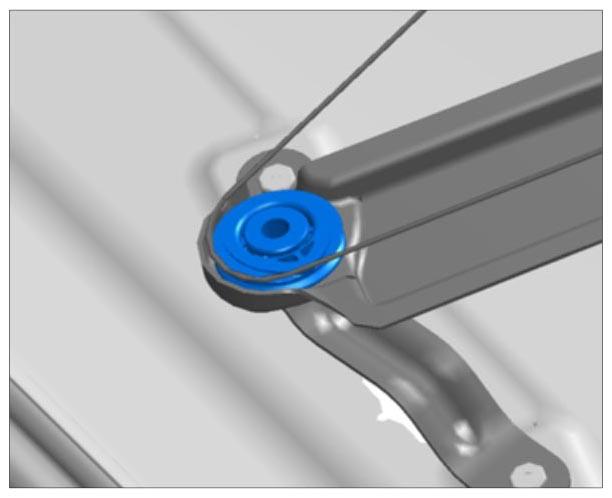

  Fig 7: Turning Bottom Roller
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install coil mechanism.
1. 6.1. Place the coil mechanism in installation position -arrow A- and press the three locking lugs into the door sub-frame -arrow B- until the locking lugs engage securely.

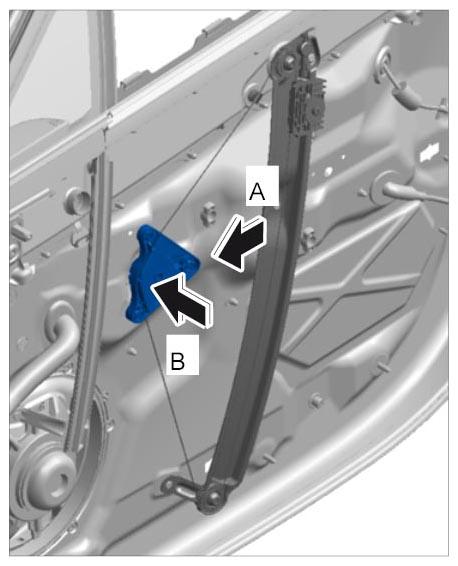

  Fig 8: Installing Coil Mechanism
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 6.2. Move the driver downwards -arrow- . This guides the cable automatically onto the correct track in the bottom roller.

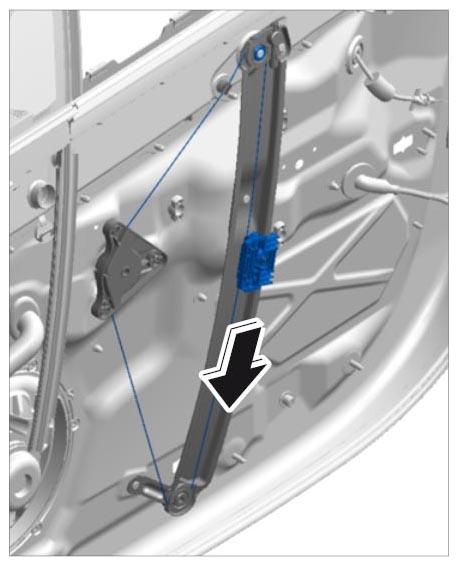

  Fig 9: Moving Driver Downwards
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 6.3. Move the driver up and down a number of times on the guide rail.
4. 6.4. Rivet in the coil mechanism -1- using a new rivet -2- .

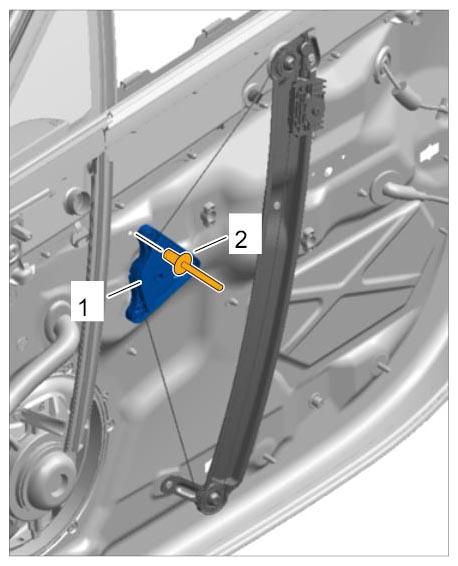

  Fig 10: Riveting Coil Mechanism
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
