Installing Window Shaft Seal

Information

• When installing the window shaft seal, slide the rubber seal for the front door under the window shaft seal.
• The cut-out on the rubber seal for the front door must follow the contours of the front face of the window shaft seal.

1. Place window shaft seal in installation position.

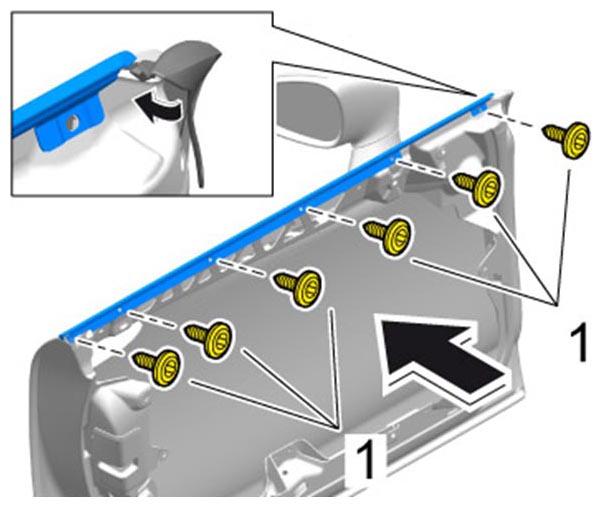

   Fig 1: Installing Window Shaft Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Screw in fastening screws for the window shaft seal → Tightening torque: 6 Nm (4.5 ftlb.)  .
