Installing Rear Window Guide

Information

• Do not clip in the clips on the new molding until you have finished all work in the door sub-frame area.

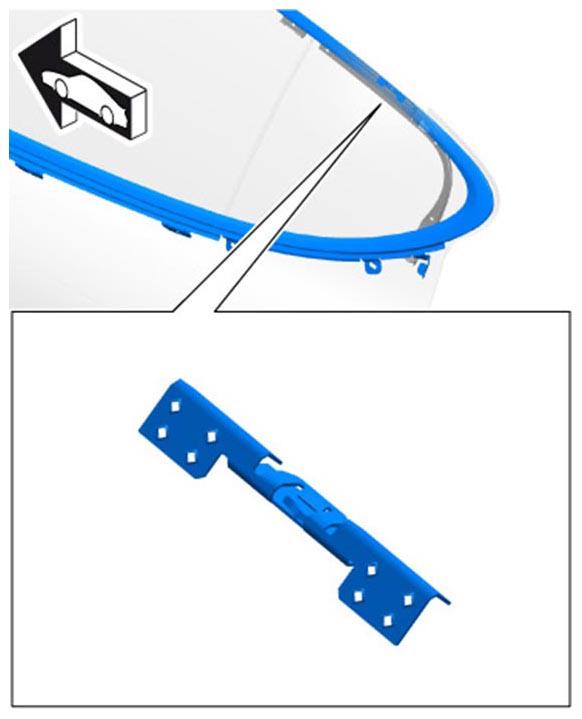

Fig 1: Identifying Clips On Molding

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

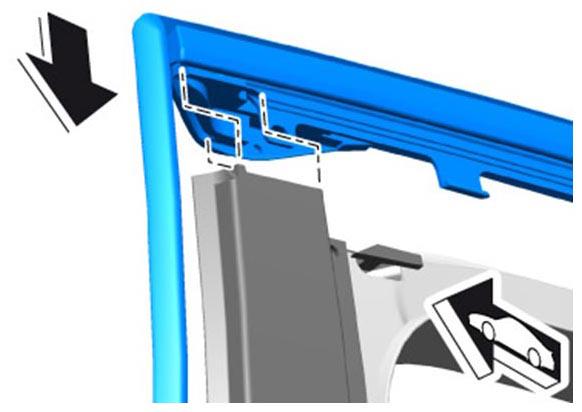

1. Position the new molding on the door sub-frame.
   1. 1.1. Guide rubber seal on molding into the B-pillar cover.
   2. 1.2. Make sure that the front edge of the molding is flush with the front edge of the B-pillar cover.
      Fig 2: Fitting Roof Molding

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Secure the molding at the top with rivets using a hand riveting tool Nr.124-1 Pos.1  .

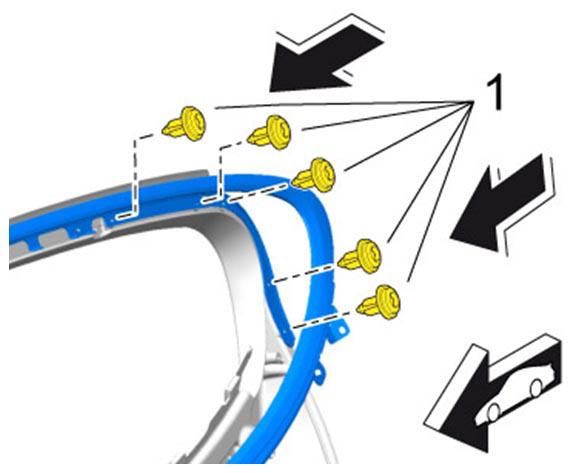

   Fig 3: Securing Molding With Rivets

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

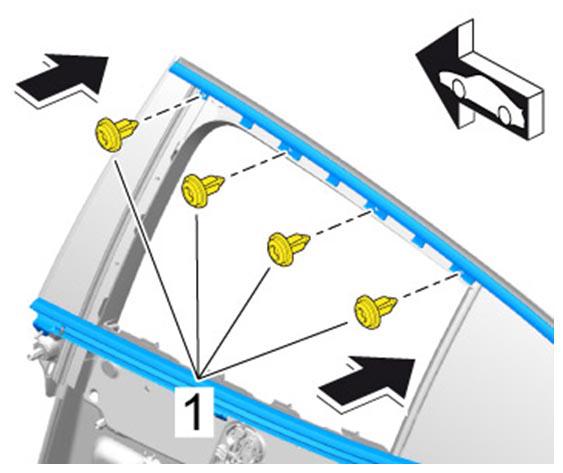

3. Secure the molding at the rear with rivets using a hand riveting tool Nr.124-1 Pos.1  .
   Fig 4: Securing Rear Molding With Rivets

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

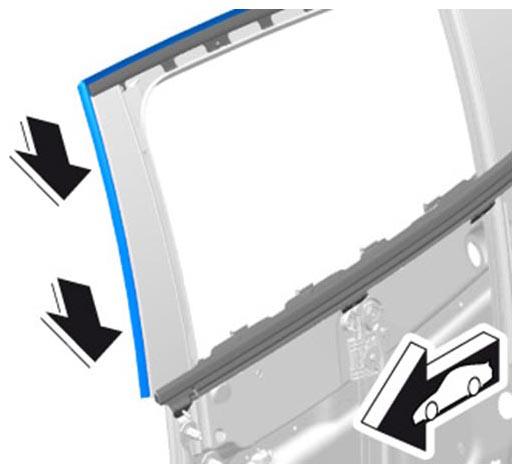

4. Affix seal to the front edge of the B-pillar cover.
   Fig 5: Affixing Seal To Front Edge Of B-Pillar Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

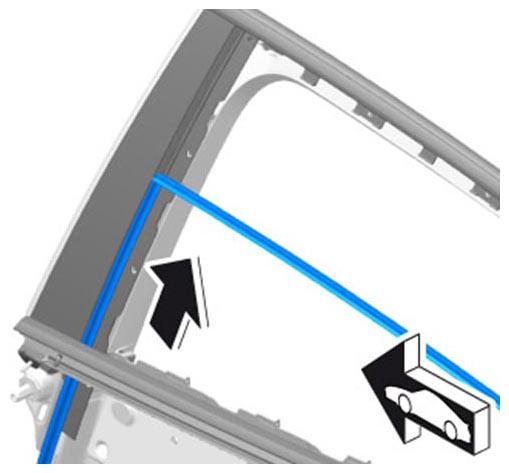

5. Pull new window guide into the B-pillar cover from below.
   Fig 6: Pulling Window Guide

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

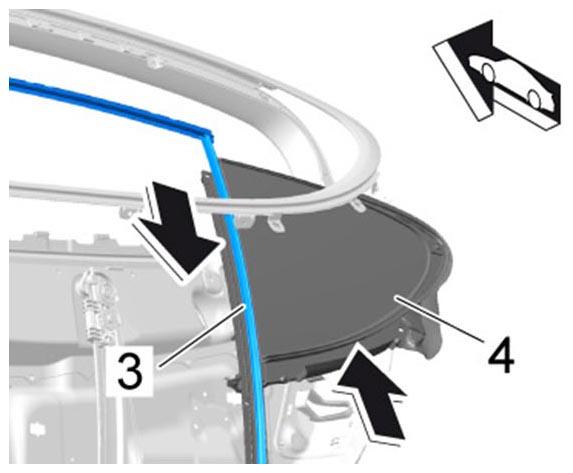

6. Pull window guide -3-  into the side window -4-  .
   Fig 7: Pulling Window Guide Into Side Window

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

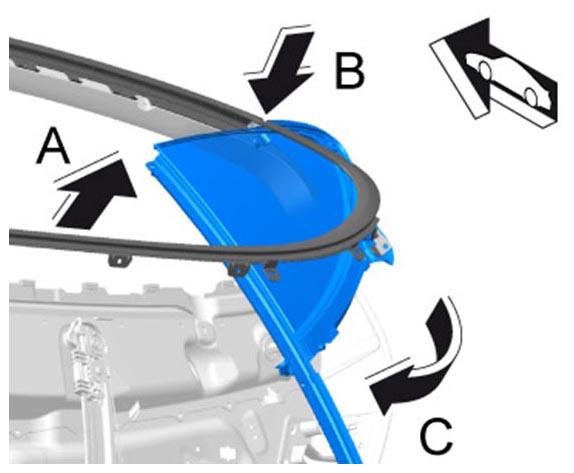

7. Fit the side window.
   1. 7.1. Lift up the molding -A-  .
   2. 7.2. Insert guide pin for side window -B-  .
   3. 7.3. Swivel in side window -C-  .
   Fig 8: Fitting Side Window
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

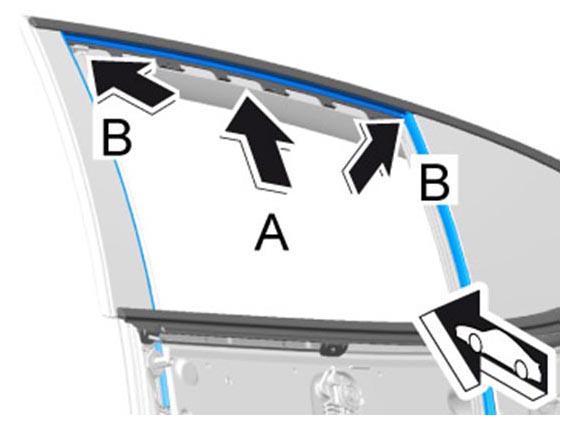

8. Press middle section of window guide into the molding -A-  .
   1. 8.1. Press middle section of window guide into the corners -B-  .
   2. 8.2. Make sure that the window guide is flush at both corners.
   Fig 9: Fitting Window Guide

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

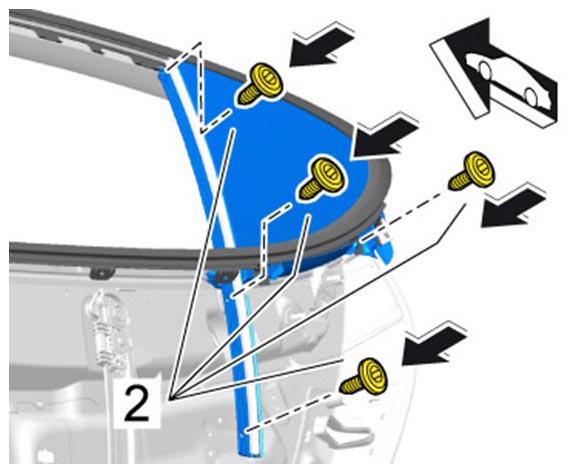

9. Loosely screw in fastening screws -2-  for the side window so that the side window can still be moved.
   Fig 10: Securing Side Window

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Adjust rear side window. → Adjusting Rear Side Window

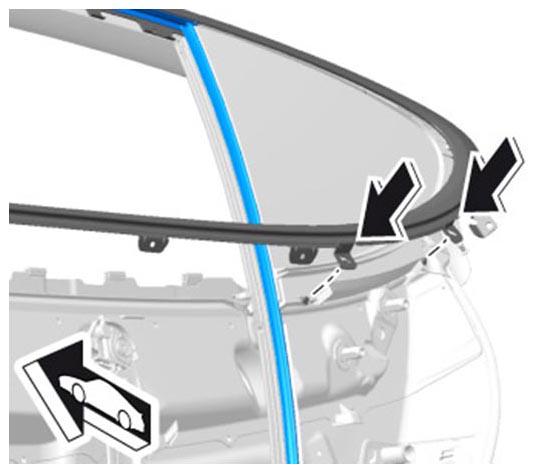

11. Clip in molding at the bottom.
    Fig 11: Installing Bottom Molding Clip

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. Clip in fixing clip for molding.
    Fig 12: Identifying Clips On Molding

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
