Tools And Materials

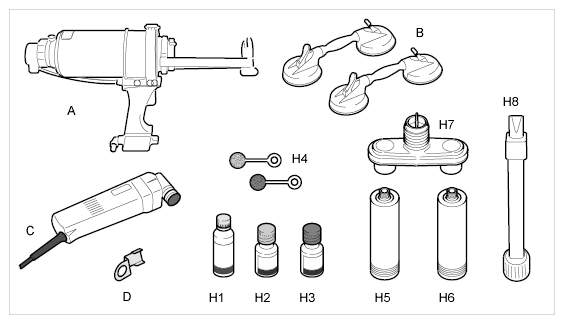

The following tools and materials are required for removing and installing the windscreen with 2-component adhesive:

1. A  - Double cartridge gun VAS 5237
2. B  - Suction cups VAG 1344
3. C  - Special electric cutter (fine) VAG 1561 A
4. D  - Flashing knife, U-type 639.031.130.22
5. H  - 2-component window adhesive 000.043.300.94, contains set components H1-H8
6. H1  - Cleaning solution
7. H2  - Primer
8. H3  - Activator
9. H4  - Swab
10. H5  - Cartridge, component A
11. H6  - Cartridge, component B
12. H7  - Mixing nozzle
13. H8  - Processing nozzle
Fig 1: Identifying Special Tools
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

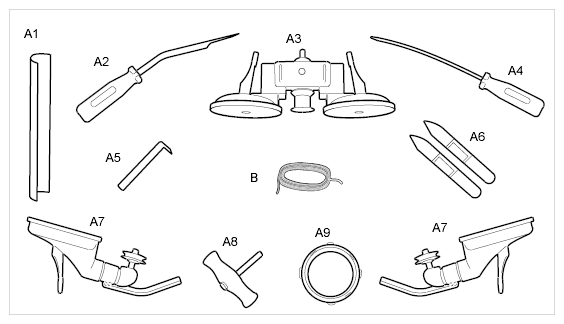

1. A  - Glass separating tool VAG 1474 B, contains set components A1-A9
2. B  - Cutting thread
3. A1  - Guide rails
4. A2  - Cutting tool (wire holder)
5. A3  - Spooling device
6. A4  - Awl
7. A5  - Guide rails
8. A6  - Filler
9. A7  - Steering roller with arm bracket
10. A8  - Handle
11. A9  - Square cutting wire
Fig 2: Identifying Special Tools
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
