Removing Cover For Rear Backrest: Notes

Turn the backrest around.
Detach cover completely using a plastic wedge.

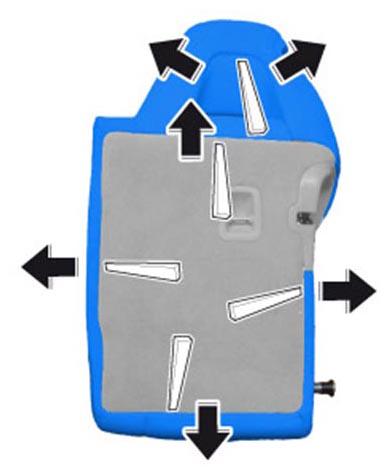

Fig 1: Detaching Rear Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide the cover through towards the front in the headrest area.

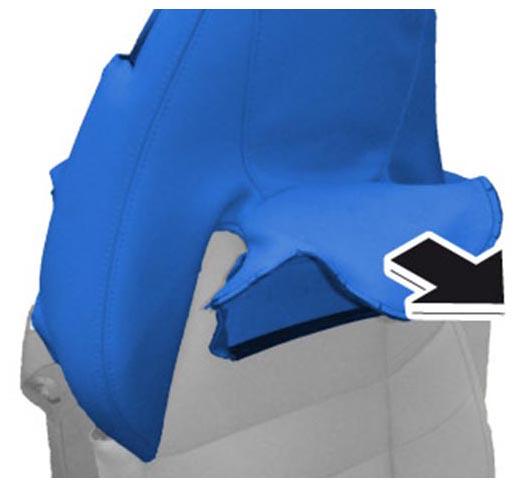

Fig 2: Pulling Headrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach cover around the lock.

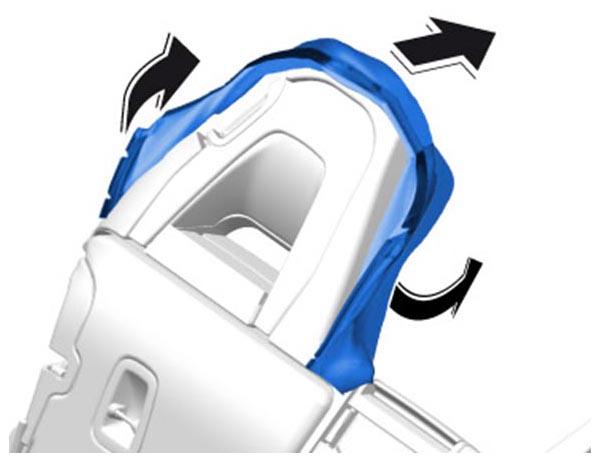

Fig 3: Detaching Headrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide off cover over the headrest.

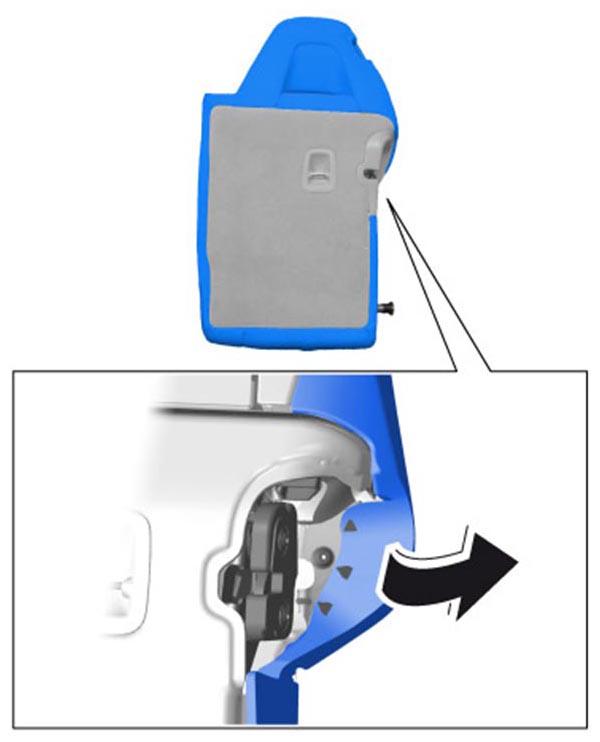

Fig 4: Detaching Headrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cushion clips.
1. 6.1. For seats without air conditioning:
  1. 6.1.1. Cut the metal cushion clips -1- in the sequence shown -a to e- using side cutters.

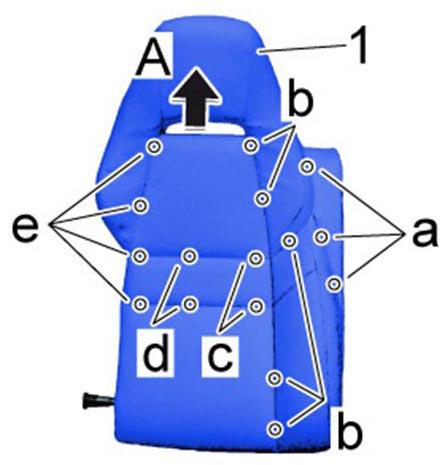

    Fig 5: Cutting Cushion Clips
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. 6.1.2. Remove remaining parts of cushion clips.
2. 6.2. For seats with air conditioning:
  1. 6.2.1. Cut the metal cushion clips in the sequence shown -a to e- using side cutters.

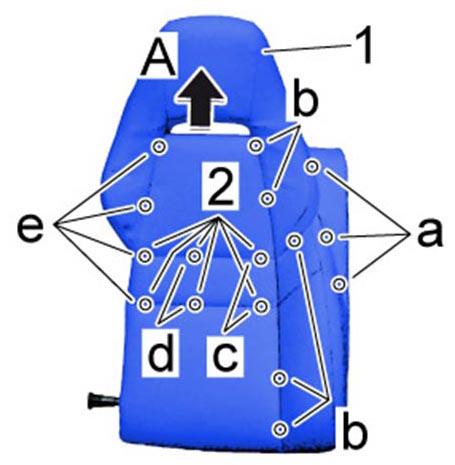

    Fig 6: Cutting Cushion Clips (Air Conditioning)
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. 6.2.2. Disengage plastic cushion clips -2- .
  3. 6.2.3. Remove remaining parts of cushion clips.
Fit electric line through the cover -arrow D- and disconnect electric plug connections.

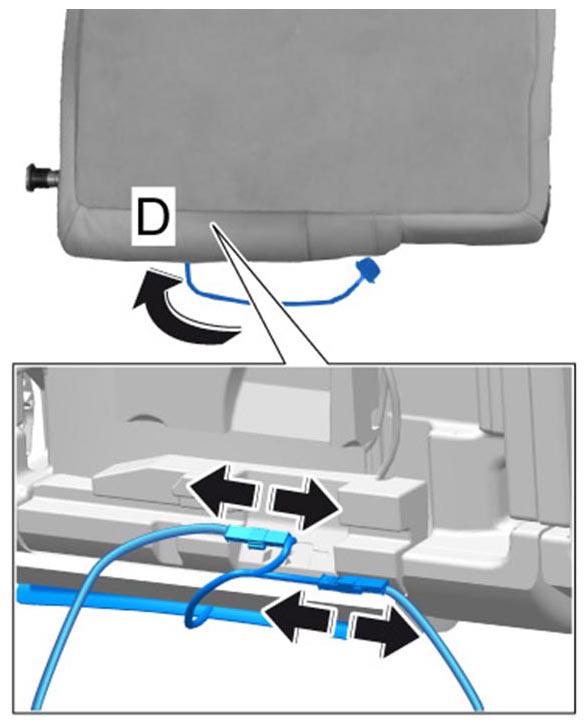

Fig 7: Disconnecting Electric Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide the cover through at the bearing pins and remove by pulling forward.
