Removing Switch For Memory Seat Adjustment

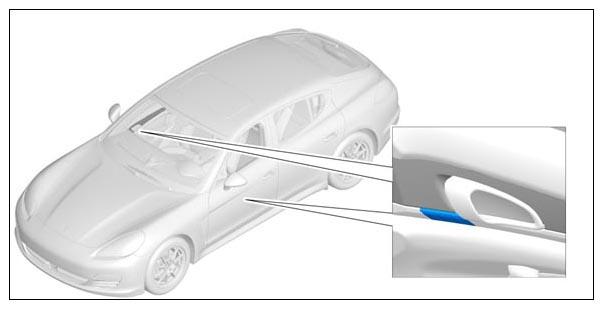

Fig 1: Memory Seat Adjustment Switch Arrangement

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Switch off ignition and remove remote control.

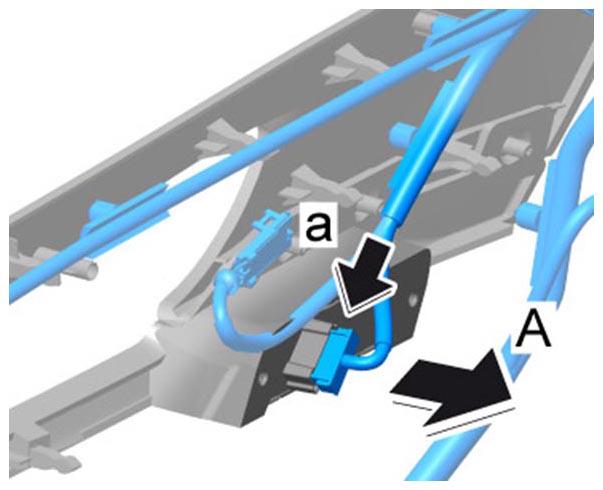

2. Release the plug connection -a-  and pull it off -A-  .
   Fig 2: Disconnecting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

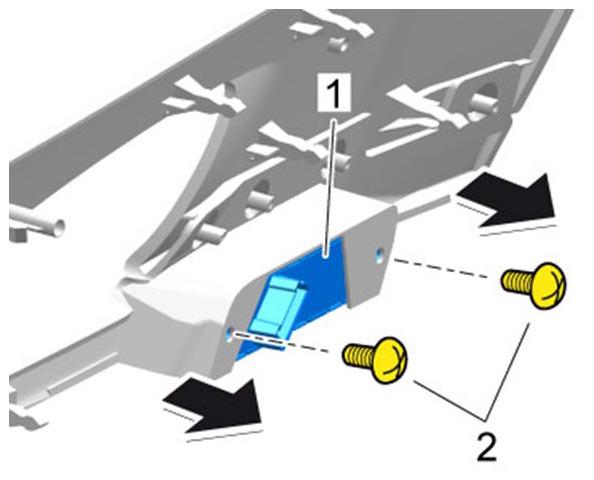

3. Unscrew fastening screws -2-  for memory seat adjustment switch -1-  and remove switch.
   Fig 3: Removing Memory Seat Adjustment Switch

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
