Installing Motor For Front Vertical Adjustment

  1. Insert the drive shaft -1-  into the transmission mount by turning it slightly -2-  .

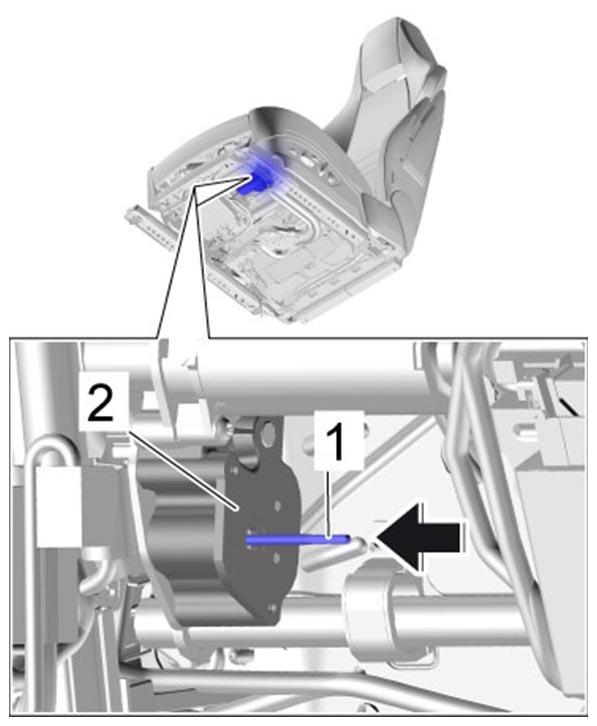

    Fig 1: Installing Drive Shaft
    G09812733Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Slide motor for front vertical adjustment -3-  onto the drive shaft by turning it slightly and secure with the two fastening screws -2-  . → Tightening torque: 7 Nm (5 ftlb.)
  3. Plug in connector -1-  on motor for front vertical adjustment -3-  until it engages securely.

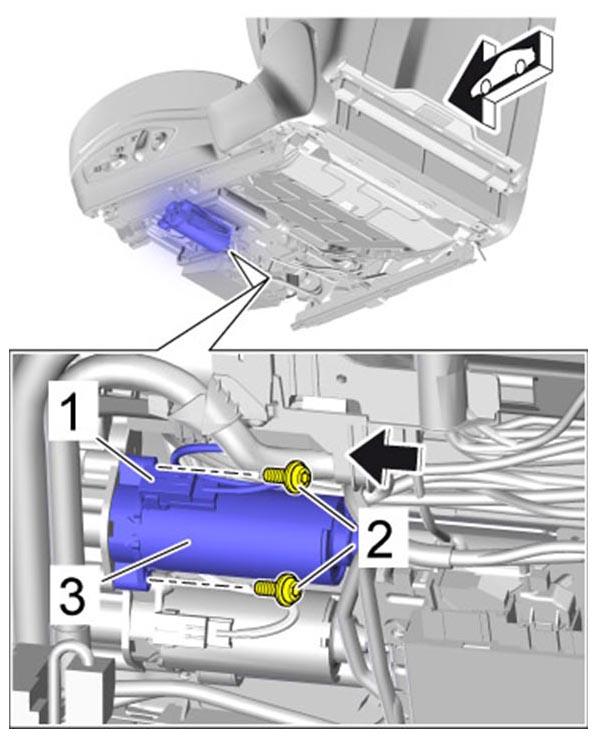

    4. Fig 2: Installing Motor For Front Vertical Adjustment
    G09812734Courtesy of PORSCHE CARS NORTH AMERICA, INC.
