Installing Control Valve For Air Cushion For Seat Surface

  1. Plug in electric plug connection -1-  until it engages securely -arrow-  .

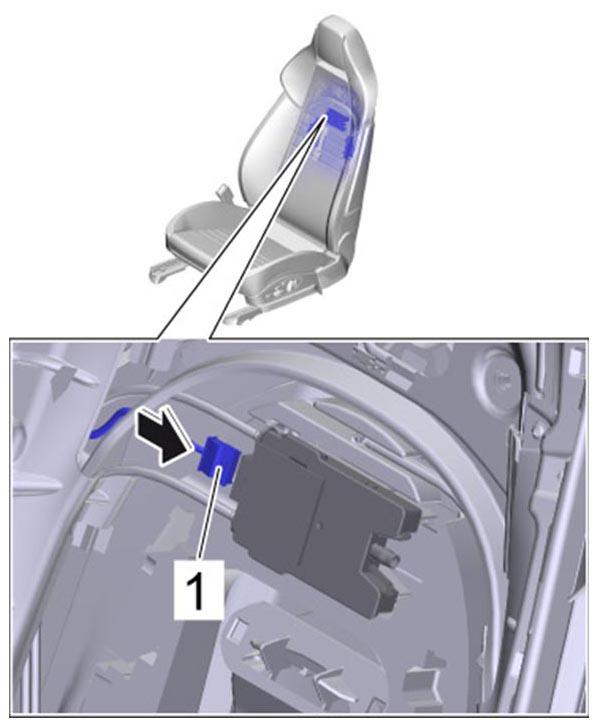

    Fig 1: Plugging In Connector
    G09812615Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Connect pressure line -1-  to the connection for the control valve for the air cushions for the seat and backrest until it engages securely -arrow A-  .
  3. Insert control valve for air cushions for seat and backrest into the guide -arrow B-  .

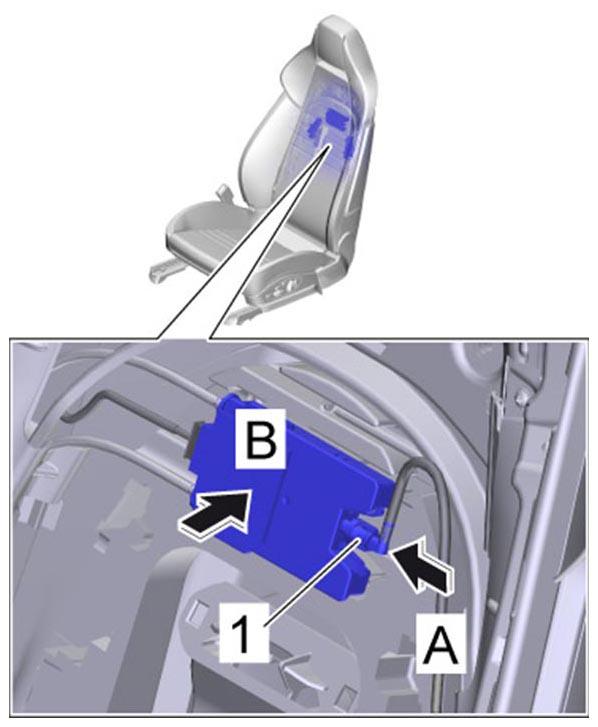

    Fig 2: Inserting Control Valve For Air Cushion For Seat And Backrest
    G09812616Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Connect pressure line for air cushion for backrest.
    1. 4.1. Route pressure line -2-  in the backrest area from the control valve down to the pneumatic plug connection.
    2. 4.2. Connect pneumatic plug connection -1-  until it engages securely -arrow-  .

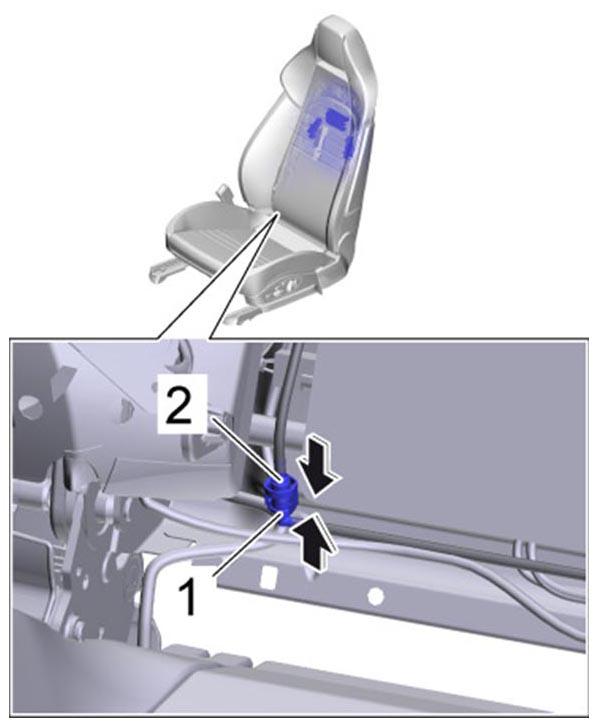

      3. Fig 3: Connecting Pressure Line For Air Cushion For Backrest
      G09812617Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Route pressure line for air cushion for seat in the backrest area.
    1. 5.1. Route pressure line for air cushion for seat -2-  in the backrest area from the control valve down to the pneumatic plug connection.
    2. 5.2. Position pressure line for air cushion for seat -2-  using a tie-wrap -1-  .

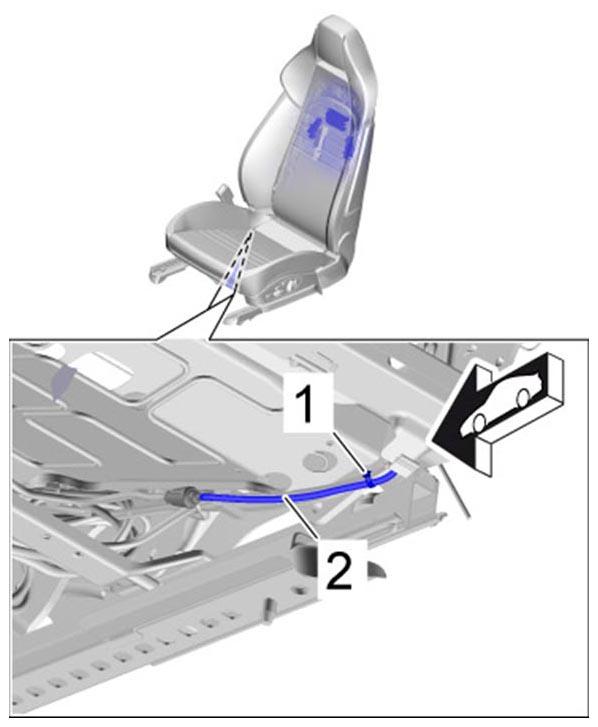

    Fig 4: Fitting Tie-Wrap
    G09812618Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Connect pressure line for air cushion for seat.
    1. 6.1. Place seat on its side.
    2. 6.2. Connect pneumatic plug connection -1-  on the underside of the seat until it engages securely -arrow A-  .
    3. 6.3. Position pressure line for air cushion for seat -2-  using a holder -3-  (-arrow B-  ).

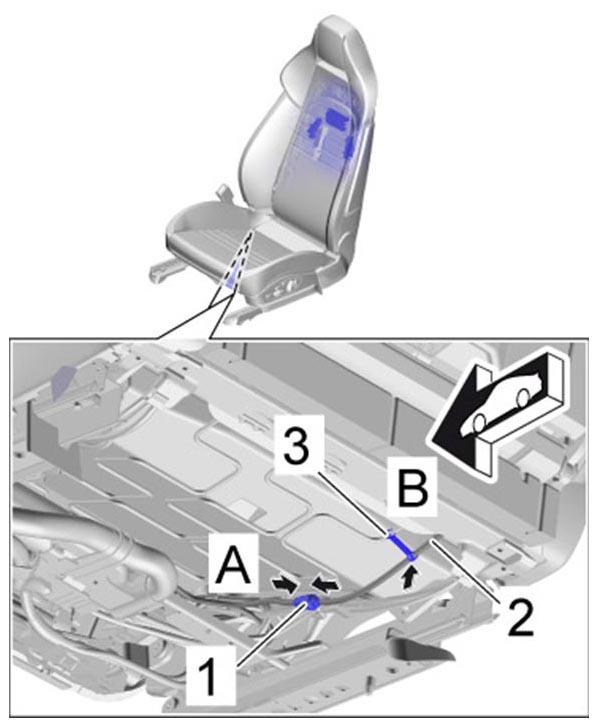

    Fig 5: Connecting Pressure Line For Air Cushion For Seat
    G09812619Courtesy of PORSCHE CARS NORTH AMERICA, INC.
