Installing Headliner

Information

Make sure that the roof cover does not buckle.

1. Fit the headliner.
   1. 1.1. Three people are needed in order to fit the headliner.
      1. 1.1.1. Position of first person: Driver's door
      2. 1.1.2. Position of second person: Passenger's door
      3. 1.1.3. Position of third person: Rear right door

         Information

         The vehicle must be raised by approx. 30 cm for this step.

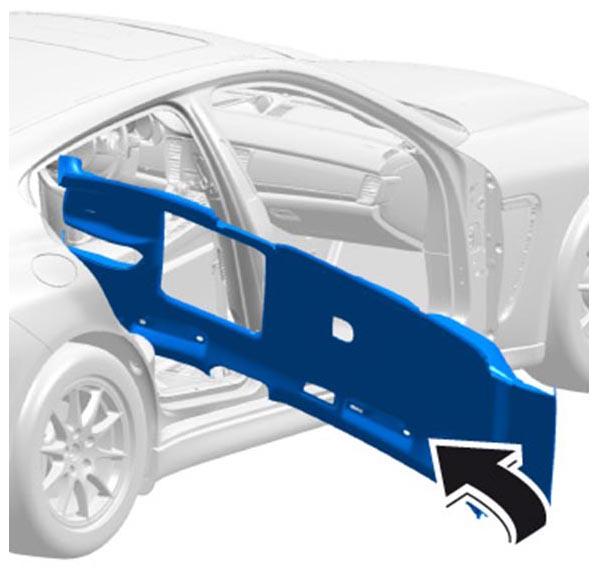

   2. 1.2. Tilt the headliner so that the cut-out in the B-pillar at the right engages in the door entry area -arrow-  .
      Fig 1: Fitting Headliner At Rear Door

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

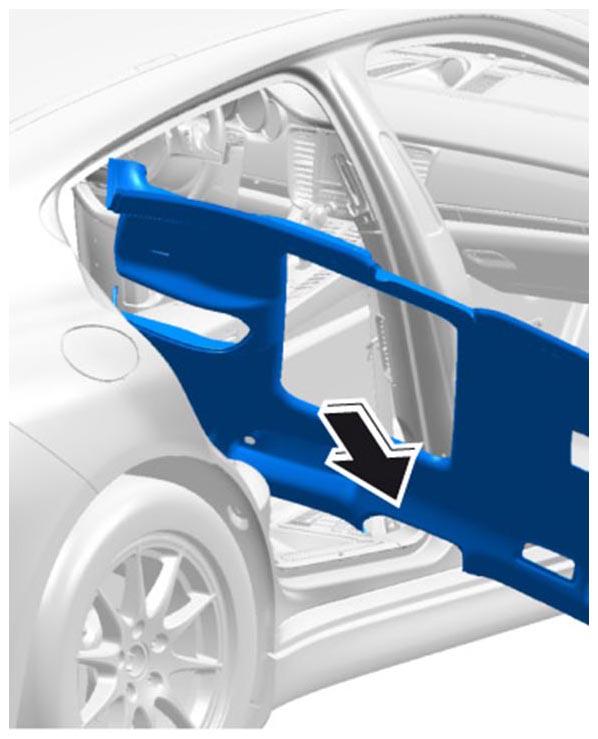

   3. 1.3. Screw the headliner into the vehicle.
      Fig 2: Screwing Headliner Into Door Aperture

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

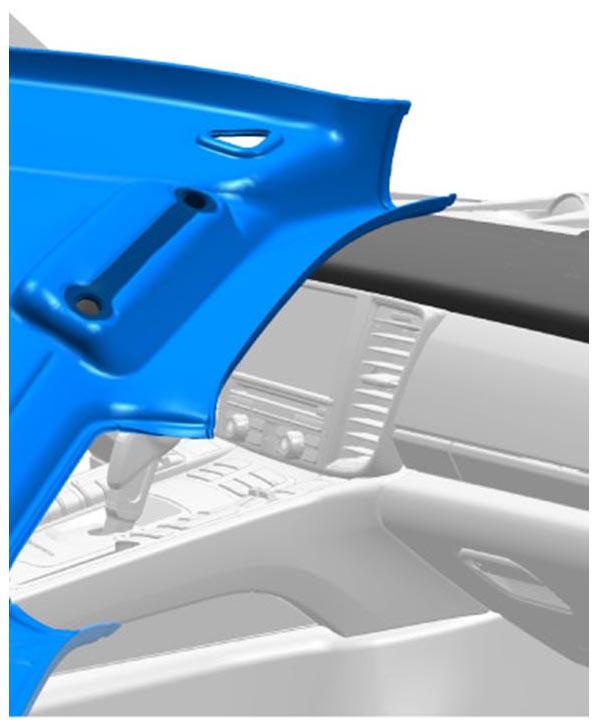

   4. 1.4. Guide the headliner into the vehicle until the front right corner of the headliner is on the dashboard.
      Fig 3: Identifying Headliner On Dashboard

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

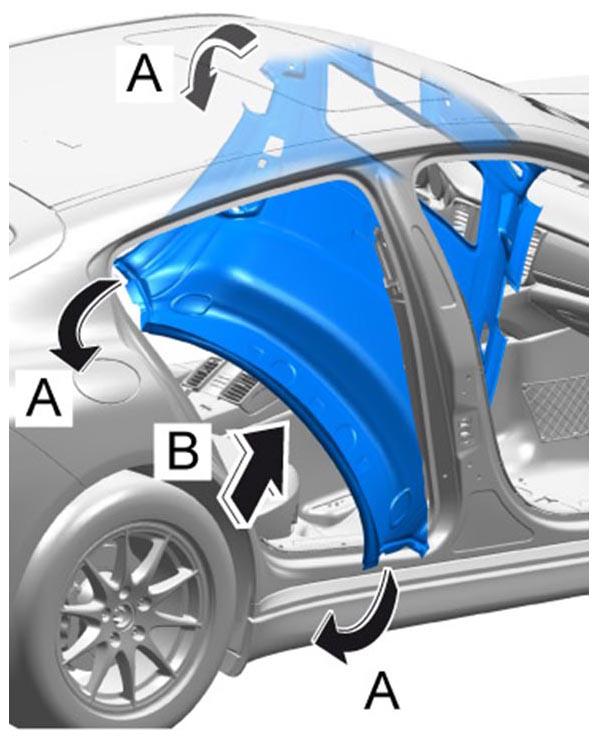

   5. 1.5. Carefully press the front left corner and the rear right -A-  and left corners -A-  of the headliner in slightly.
      Fig 4: Positioning Corners Of Headliner

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   6. 1.6. Guide headliner completely in through the rear right door -B-  .

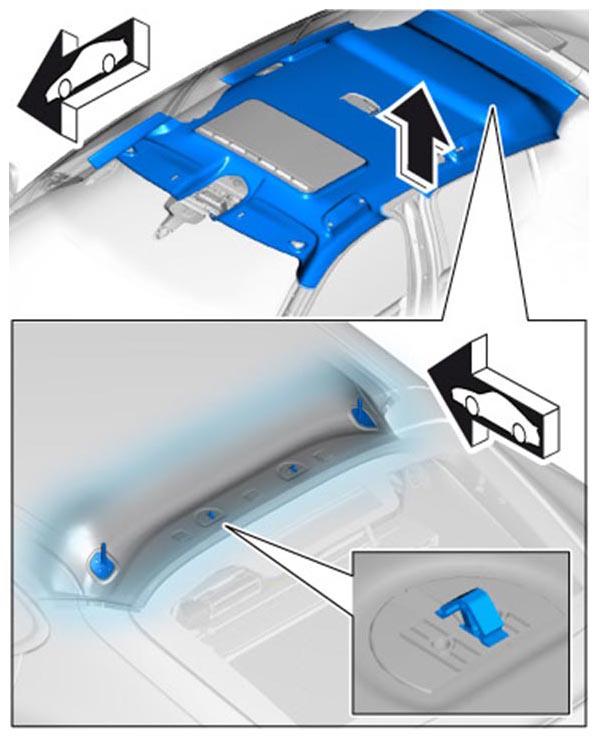

2. Clip in fastening part of headliner in the rear area.
   Fig 5: Clipping In Headliner At Rear

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

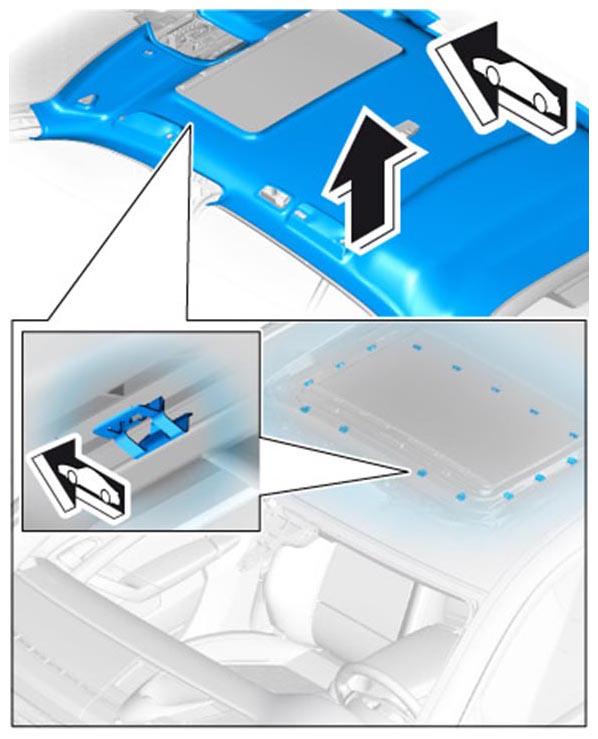

3. Clip in the headliner close to the sliding-roof cut-out using the fixing clips (only on vehicles with a sliding roof).
   Fig 6: Clipping In Headliner At Sliding Roof

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
