Removing Dashboard Trim Panel At The Left And Right

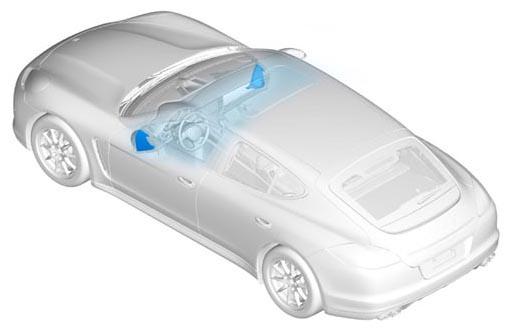

Fig 1: Overview Of Dashboard
G09812188Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove trim panel at the cut-out using a plastic wedge.
  2. Swivel the trim out using the plastic wedge -arrow A -  and unclip it from the retaining clips.
  3. Pull the trim back -arrow B-  out of the rubber strap.

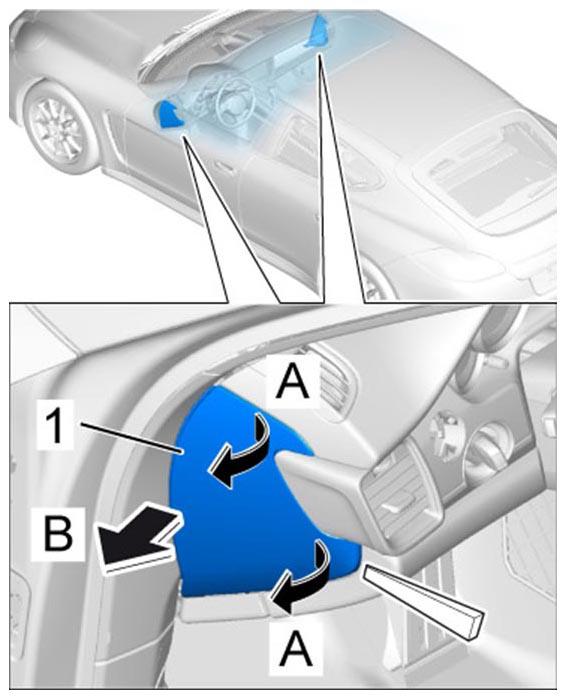

Fig 2: Removing Trim
G09812189Courtesy of PORSCHE CARS NORTH AMERICA, INC.
