Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw for lashing point   Tightening torque 9.7 Nm +/-1 Nm (+/- 0.5 ftlb.)

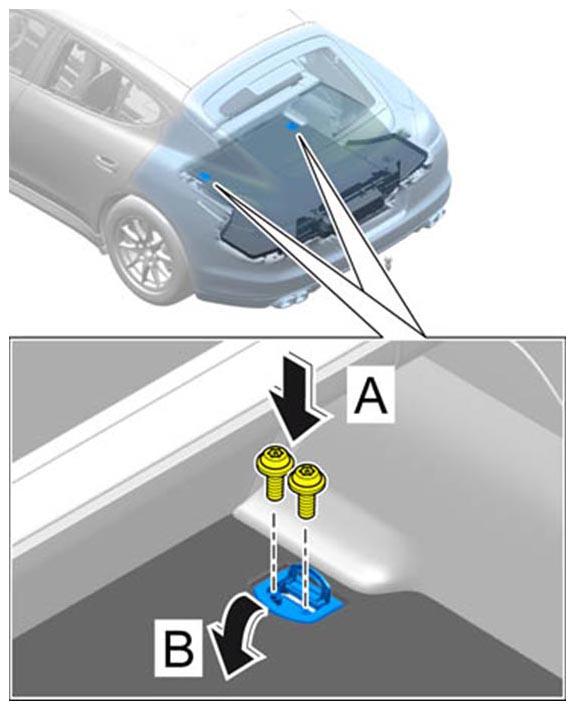

G09812136

Installing lashing point
