Adjusting Striker Pin

Information

• The striker pin can be adjusted by changing the plasticity of the adjusting element in the B-pillar.
• The setting is retained when the striker pin is removed.

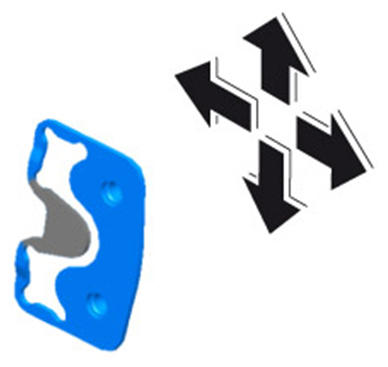

  Fig 1: Adjusting Element For Striker Pin

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Loosen fastening screws -2-  .
2. Move striker pin outwards.
   1. 2.1. Move the striker pin -1-  outwards (if necessary) using a slide hammer kit Nr.168  .

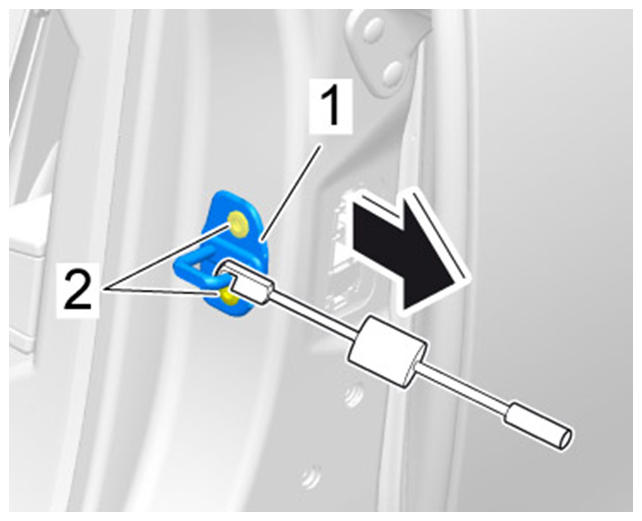

   Fig 2: Moving Striker Pin Outwards
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Adjust the striker pin back/down/up (if necessary).
   1. 3.1. Move catch bar -1-  to the required position using a plastic hammer.
   2. 3.2. Close the door carefully and check the setting.

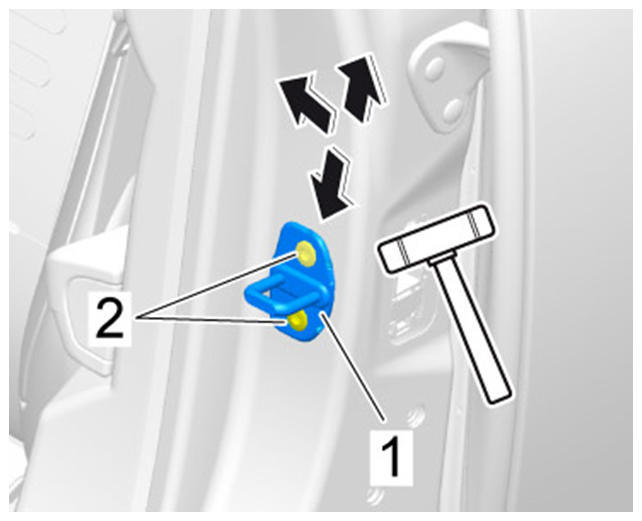

   Fig 3: Adjusting Striker Pin
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Screw in fastening screws -2-  and tighten to the specified tightening torque → Tightening torque: 23 Nm (17 ftlb.)  .
