Installing Lock Peg

  1. Screw in fastening screws -2-  .

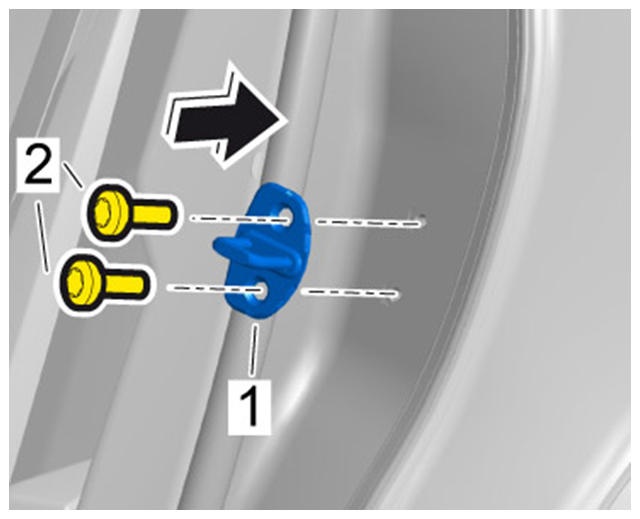

    Fig 1: Installing Lock Peg
    G09810295Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully close door and check that the lock peg is positioned correctly with respect to the lock.
  3. Adjust the lock peg to suit the lock as required.
  4. Tighten fastening screws -2-  to the specified tightening torque Tightening torque 23 Nm (17 ftlb.)  until secure.
  5. Check position of doors and make adjustments if necessary. → 575115 ADJUSTING FRONT DOOR  -
