Removing Reservoir For Windscreen Washer System

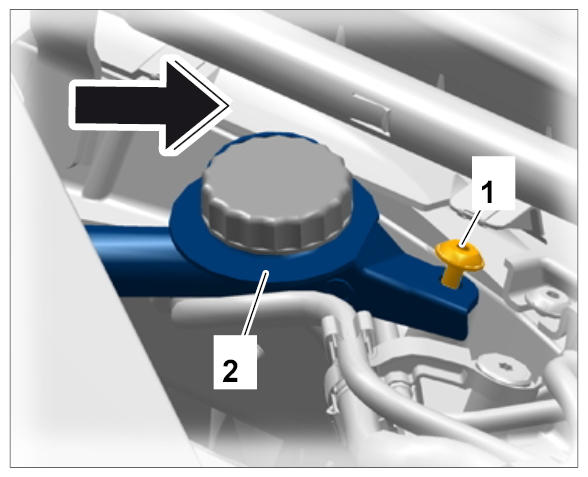

- Unscrew and remove fastening screw -1-
on the filler tube -2-
for the reservoir.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Pull out filler tube -2-
for the reservoir to the engine compartment.

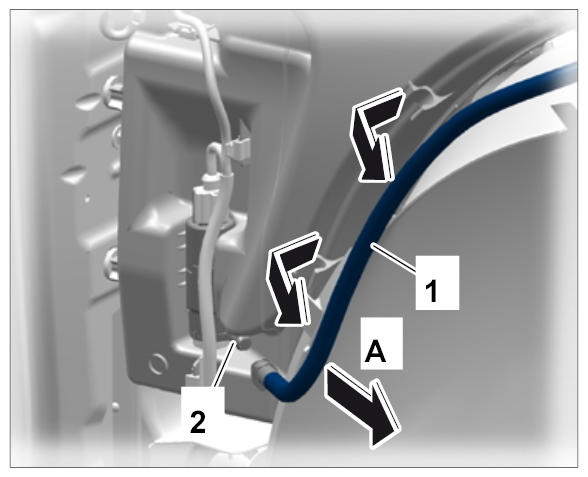

- Pull hose -1-
off the pump -2-
and unclip it at the reservoir -A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Collect emerging fluid in a suitable container.

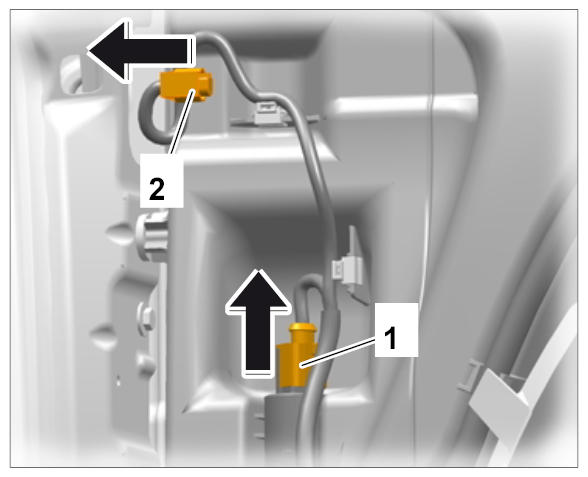

- Release and pull off plug connection -1-
for pump for windscreen washer system -a-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Release and pull off plug connection -2-
on sensor for fluid level indicator -b-
.

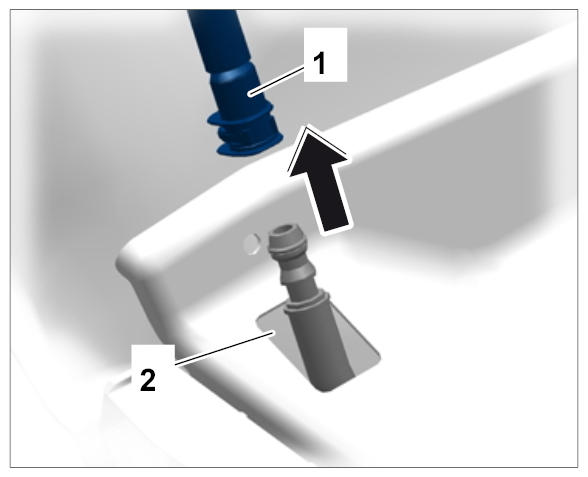

- Pull off hose for headlight cleaning system -1-
at the connection point in the front apron -2-
and unclip it under the wing.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

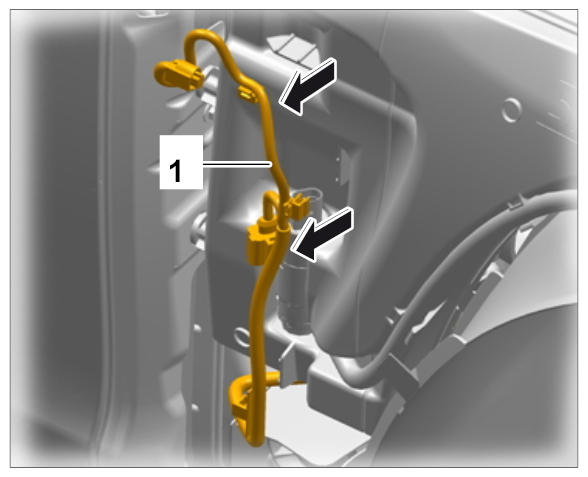

- Remove clip -1-
with the wire harness from the reservoir.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Unscrew and remove fastening screw -2-
on the reservoir for the windscreen washer system.
- Pull the reservoir -2-
forward -B-
until you can reach the pump for the headlight cleaning system.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Release plug connection -1-
on pump for headlight cleaning system -a-
and pull it off -A-
.
- Remove the reservoir -2-
(-B-
).
