Removing Wiper Linkage

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

1. Turn the wiper linkage and move it into position -A-  so that the fastening screw -1-  can be reached.

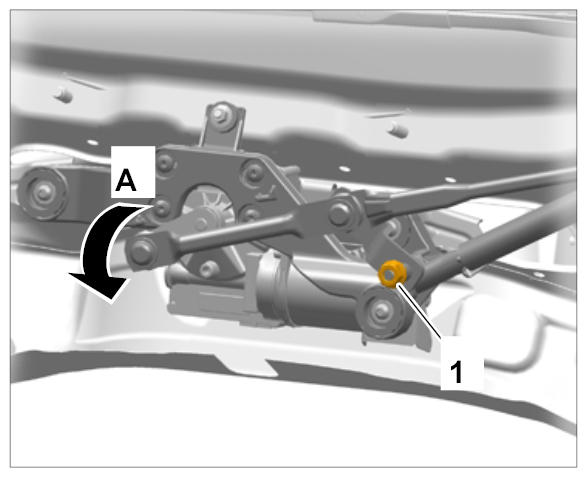

   Fig 1: Turning Wiper Linkage Into Position

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew and remove fastening screws -1-  .
3. Screw off fastening nut -2-  .
4. Push wiper linkage to the left -A-  .

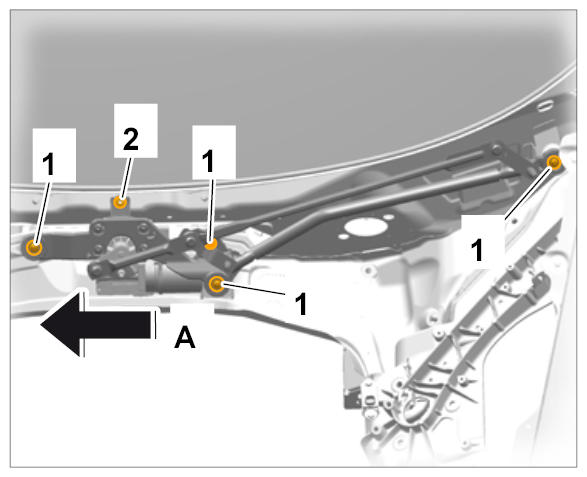

   Fig 2: Removing Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Release and pull off electric plug connection -1-  (-a-  ).

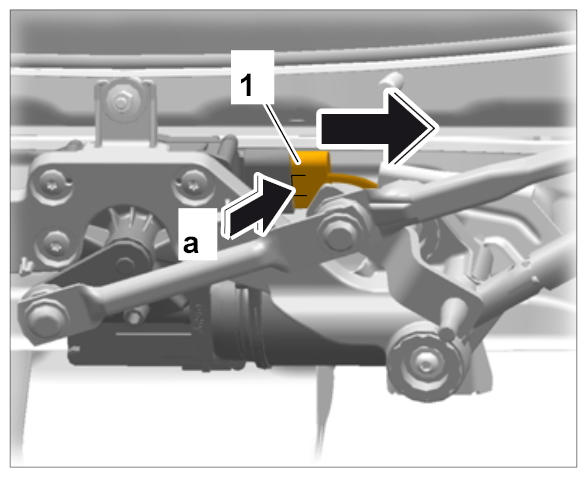

   Fig 3: Pulling Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Lift up wiper linkage with wiper motor and remove it -A-  .

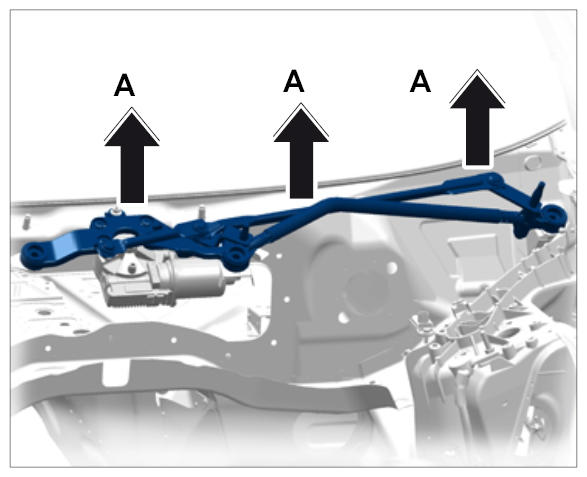

   Fig 4: Removing Wiper Linkage

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Remove wiper motor. → 921519 REMOVING AND INSTALLING WIPER MOTOR
