Removing Wiper Motor

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

1. Place wiper linkage and wiper motor on a solid surface.
2. Lever the push rod -1-  off the ball joint -2-  using a suitable tool -A-  .
3. Unscrew and remove fastening screws -3-  .

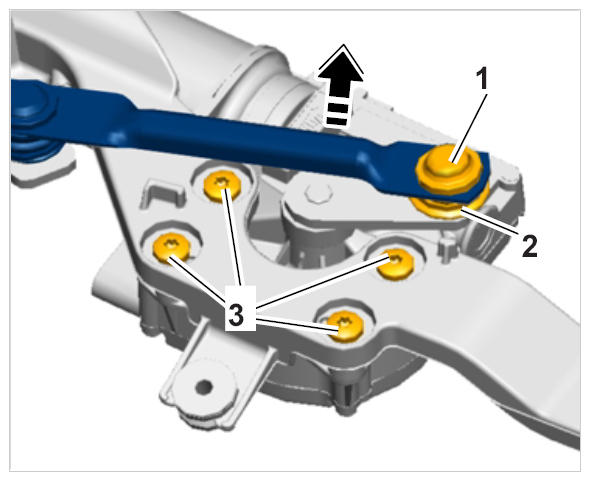

   Fig 1: Levering Push Rod

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove wiper motor.
