Removing Control Unit For Telephone

  1. Carefully open the cover on the PCM using a screwdriver.

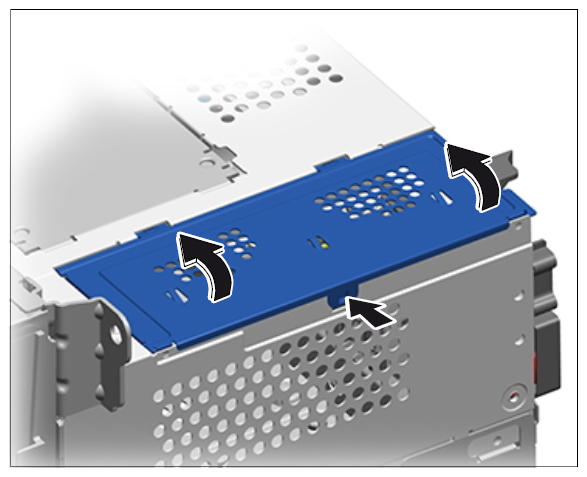

    Fig 1: Opening Control Unit Cover
    G09813951Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew and remove the two fastening screws -1-  for the control unit and remove control unit.

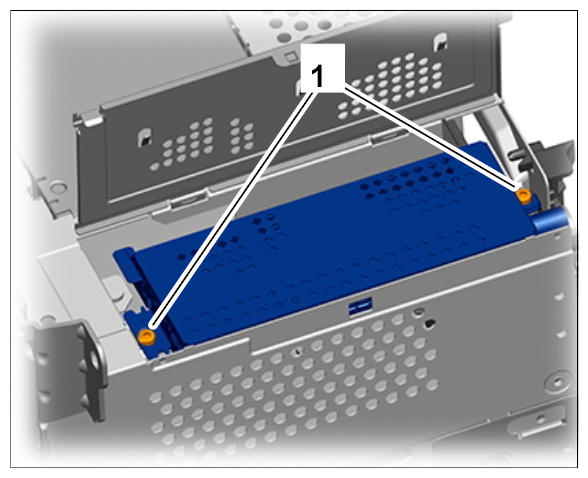

    Fig 2: Unscrewing Control Unit Fastening Screws
    G09813952Courtesy of PORSCHE CARS NORTH AMERICA, INC.
