Home >> Porsche >> 2016 >> Panamera 4S >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Drivers Assistance Systems - ADAS >> 91 - Radio, Stereo, Telephone, On-Board Computer -- PANAMERA (970) >> WM 919019 Removing And Installing Control Unit For Telephone (Except PANAMERA S Executive, PANAMERA 4 S Executive, PANAMERA Turbo Executive, PANAMERA GTS) >> Removing Control Unit For Telephone

Removing Control Unit For Telephone

  1. Carefully open the cover on the PCM using a screwdriver.

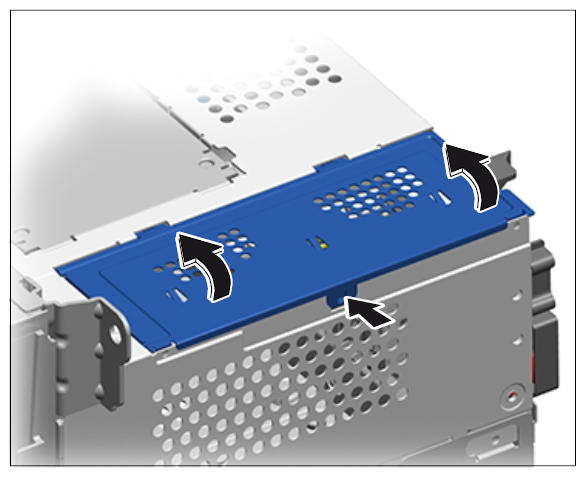

    Fig 1: Removing Control Unit For Telephone
    G09813948Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew and remove the two fastening screws -1-  for the control unit and remove control unit.

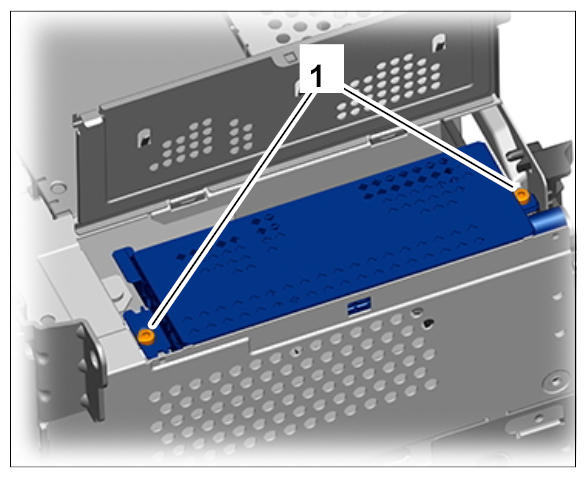

    Fig 2: Identifying Control Unit Fastening Screws
    G09813949Courtesy of PORSCHE CARS NORTH AMERICA, INC.
