Removing Antenna Control Unit

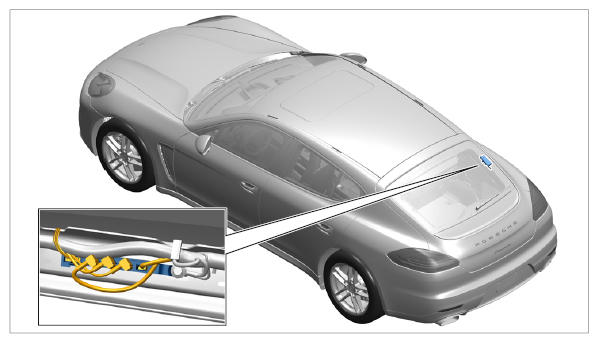

Fig 1: Identifying Antenna Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove remote control.
Information

The number of plug connections can vary, depending on equipment.

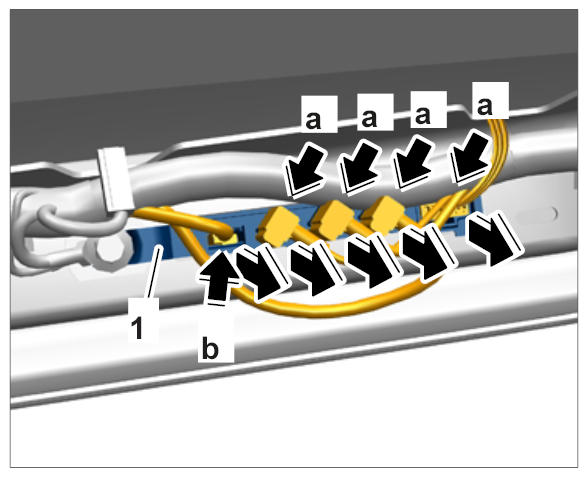

Detach plug connections for antenna control unit.
1. 2.1. Unlock plug connections for antenna control unit -1- (-a- ) and pull them off.
2. 2.2. Carefully lever off plug connection for antenna control unit with a screwdriver -b- .

  Fig 2: Disconnecting Plug Connections
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

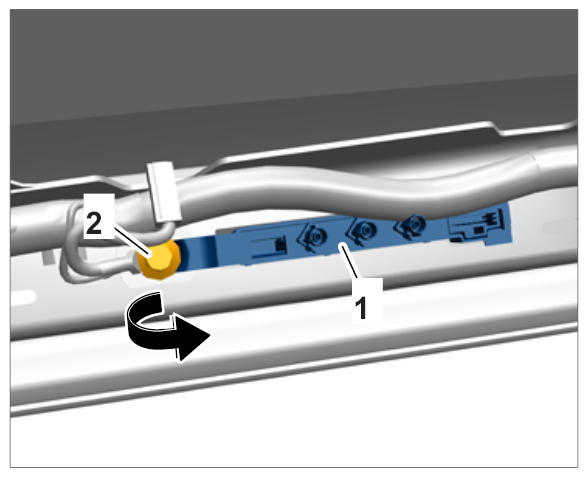

Unscrew fastening screw -2- for antenna control unit -1- and remove antenna control unit from its bracket.

Fig 3: Removing Antenna Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
