Removing Control Unit For Parkassist

Information

The number of plug connections can vary, depending on equipment.

  1. Release the electric plug connections -1-  (-a-  ) and pull them off.
  2. Release clip by pressing it -b-  and remove control unit for ParkAssist.

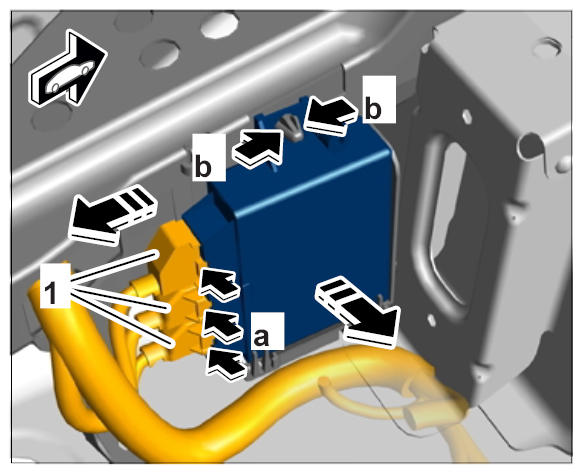

    3. Fig 1: Removing Control Unit For Parkassist
    G09813924Courtesy of PORSCHE CARS NORTH AMERICA, INC.
