Installing Front Camera

Information

Check that the camera is positioned correctly. The camera is designed with positioning lugs to prevent it from turning and can only be installed at one position.

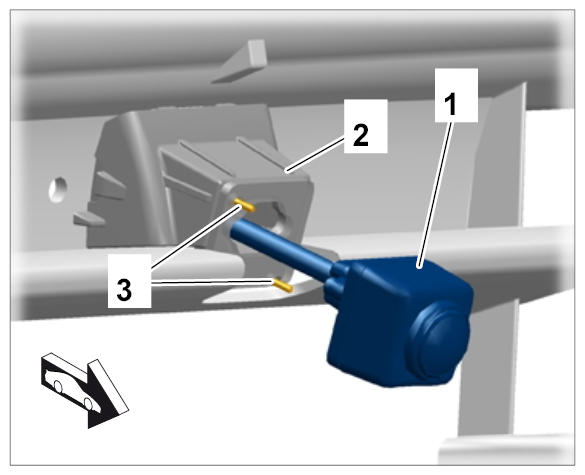

1. Guide the camera -1-  into the front apron and use the positioning lugs -3-  to position it on the camera holder -2-  .
   Fig 1: Positioning Camera On Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

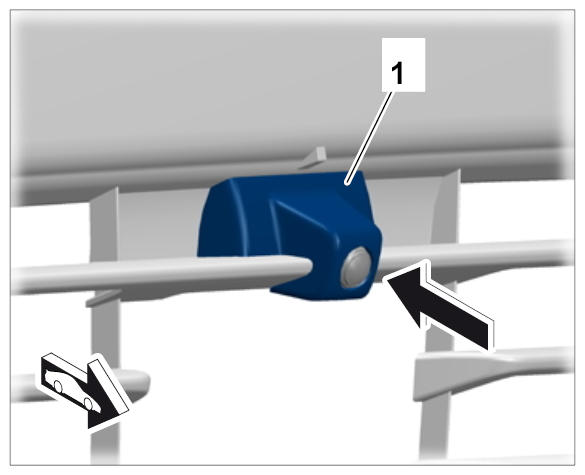

2. Position cap -1-  and push it in -arrow-  .
   Fig 2: Installing Cap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

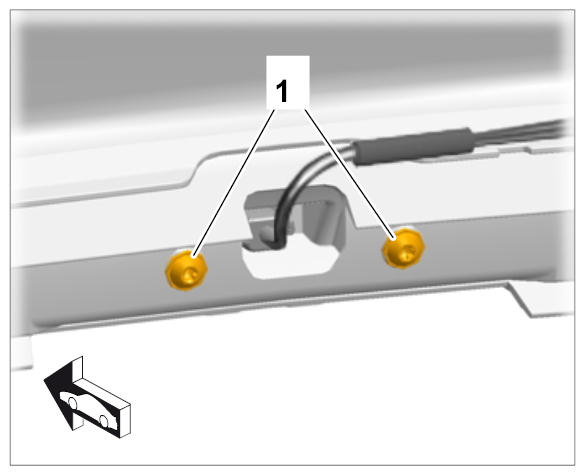

3. Tighten fastening screws -1-  on the cap.
   Fig 3: Tightening Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

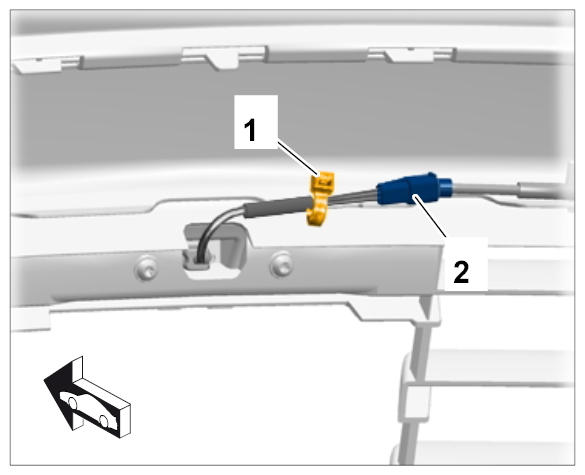

4. Connect electric plug connection -2-  until it engages securely.
5. Secure wiring harness to the front apron with a tie-wrap -1-  .
   Fig 4: Securing Wiring Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
