Removing Mobile Communication Antenna

  1. Detach the cable -3-  , which is secured using a Velcro fastener, from the mobile communication antenna.
  2. Unscrew the two fastening nuts -1-  .
  3. Carefully detach the connector strip -2-  from the fixing clips and remove the mobile communication antenna.

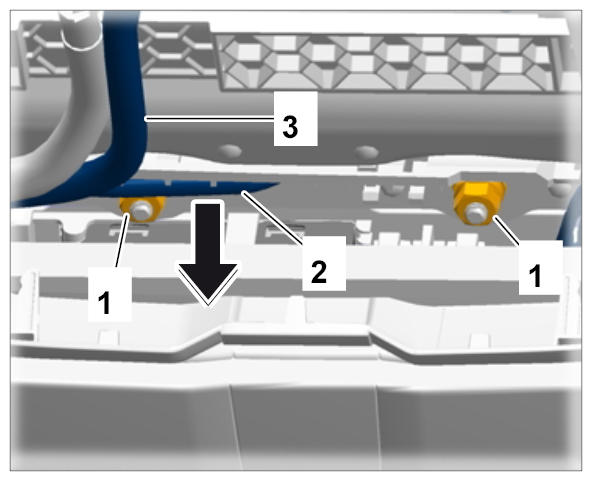

    4. Fig 1: Removing Mobile Communication Antenna
    G09813859Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Release and pull off electric plug connection -a-  .

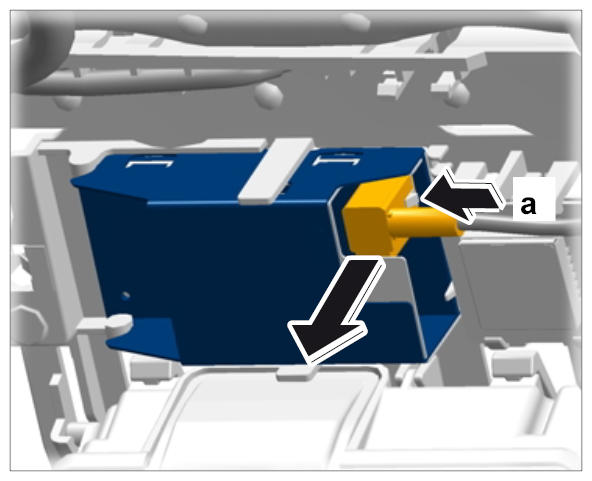

    Fig 2: Disconnecting Plug Connection
    G09813860Courtesy of PORSCHE CARS NORTH AMERICA, INC.
