Installing Reversing Camera

Information

Note installation position of the reversing camera.

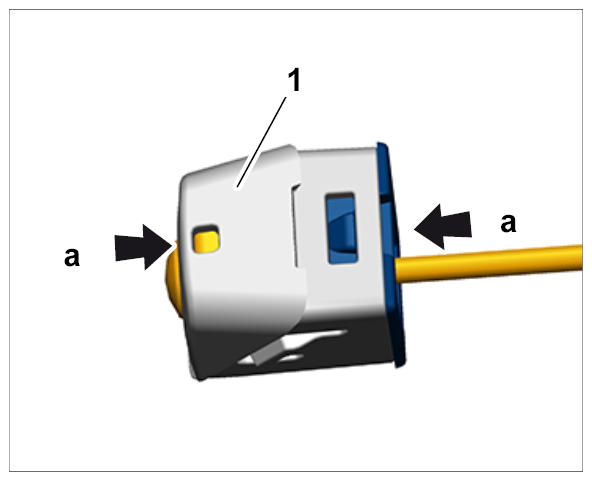

1. Push cap -1-  onto reversing camera and clip it in -a-  .
   Fig 1: Removing Reversing Camera

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

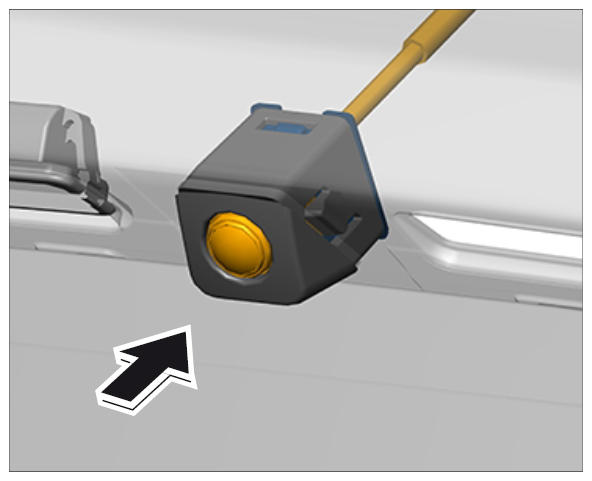

2. Push reversing camera into rear apron -arrow-  until it engages securely.
   Fig 2: Installing Reversing Camera

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

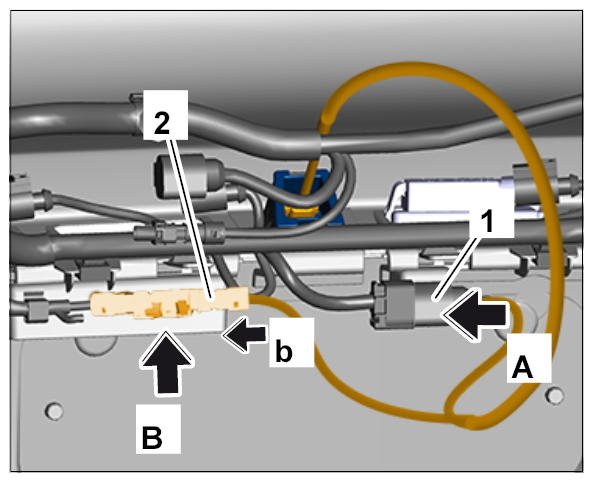

3. Plug in electric plug connection -1-  until it engages securely. -A-  .
4. Insert the antenna line -2-  until it engages securely -b-  and clip it onto the bracket -B-  .
   Fig 3: Connecting Electric Plug Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
