Installing Low-Range Loudspeaker In Door Sub-Frame

Information

• A damaged or deformed low-range loudspeaker must not be installed because there is no guarantee that it will be possible to seal it fully.
• Check the sealing surface and seal on the new low-range loudspeaker for signs of damage and deformation.

1. Remove the remaining pieces of the blind rivets that have fallen in from the door.
2. Install low-range loudspeaker.

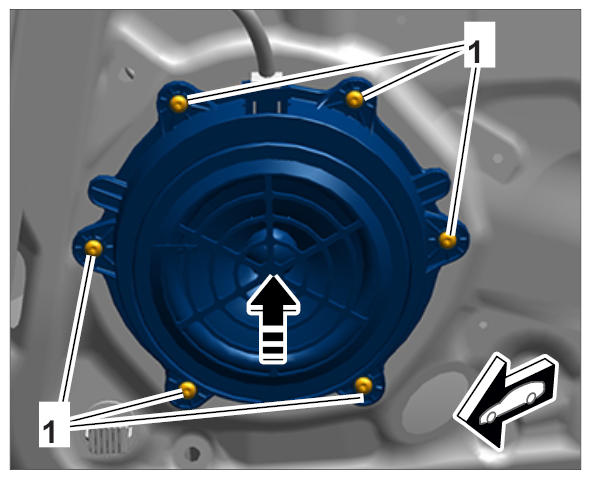

   Fig 1: Installing Low-Range Loudspeaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Position the low-range loudspeaker.
   2. 2.2. Insert the six blind rivets -1-  and rivet them to the door sub-frame using the hand riveting tool Nr.124-1 Pos.1  and mouth piece Nr.124-2 Pos.2  .
   3. 2.3. Connect plug connection -B-  until it engages securely.

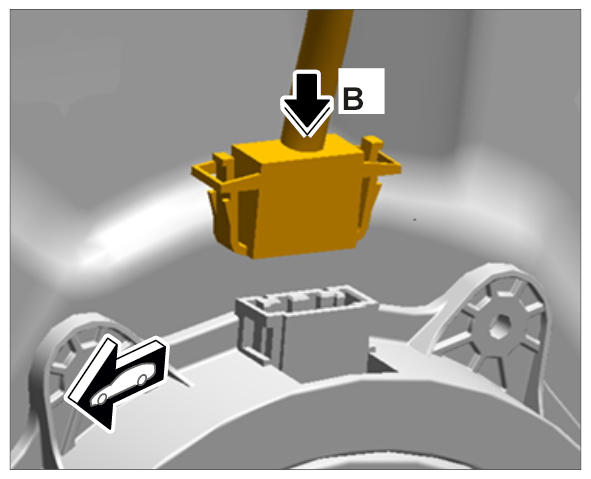

      Fig 2: Connecting Plug Connection

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
