Removing Mid-Range Loudspeaker From Door Panel

→ Remove the ignition key and switch off load before disconnecting or removing load.

1. Unclip the loudspeaker cover using a suitable tool.

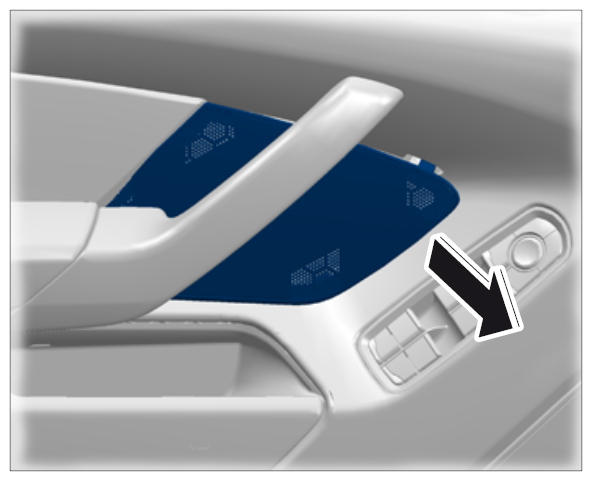

   Fig 1: Removing Loudspeaker Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove mid-range loudspeaker.
   1. 2.1. Unscrew the three fastening screws -2-  .
   2. 2.2. Remove the loudspeaker from the door panel.
   3. 2.3. Pull off plug connection for loudspeaker.

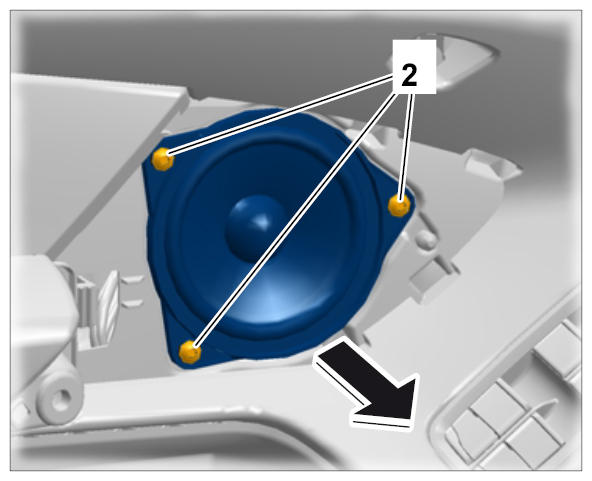

   Fig 2: Removing Mid-Range Loudspeaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

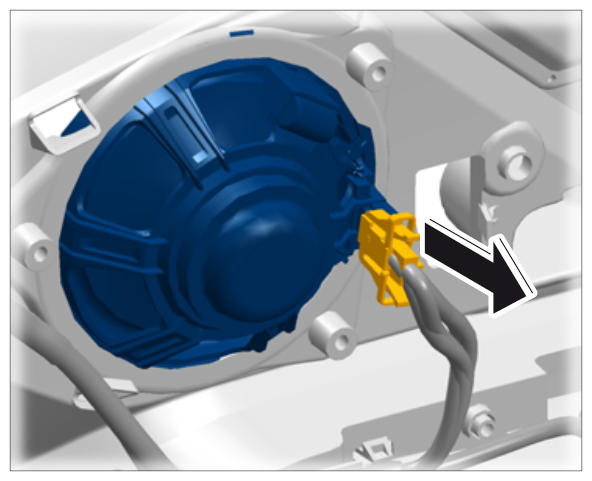

Fig 3: Pulling Off Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
