Installing Mid-Range Loudspeaker In Door Panel

  1. Install mid-range loudspeaker.
    1. 1.1. Connect plug connection.

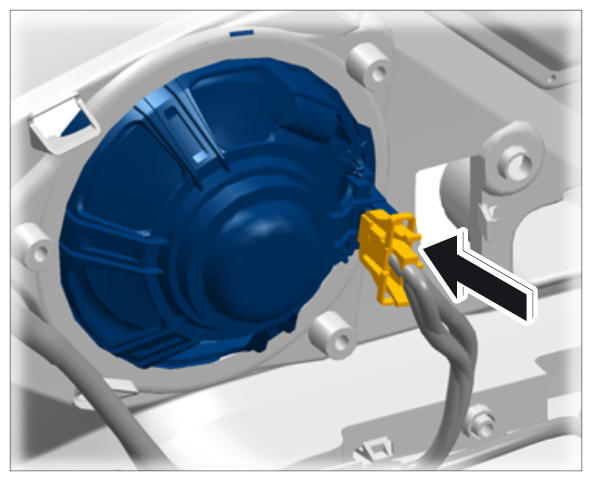

      Fig 1: Connecting Plug Connection
      G09813812Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 1.2. Check that the plug connection is seated securely.
    3. 1.3. Position the mid-range loudspeaker.
    4. 1.4. Screw in the three fastening screws -2-  .

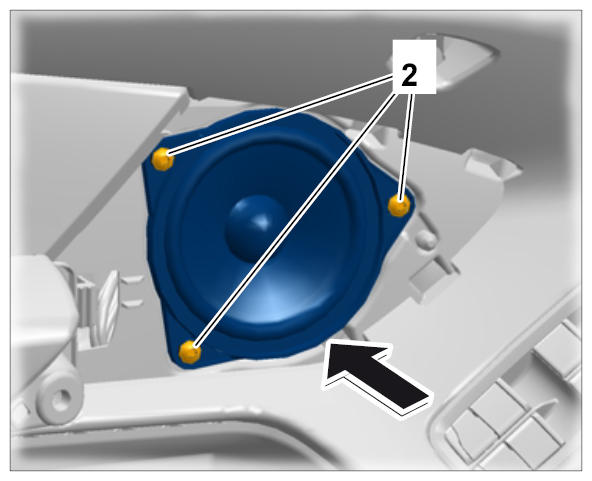

    Fig 2: Installing Mid-Range Loudspeaker
    G09813813Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit loudspeaker cover -A-  and clip it in -B-  .

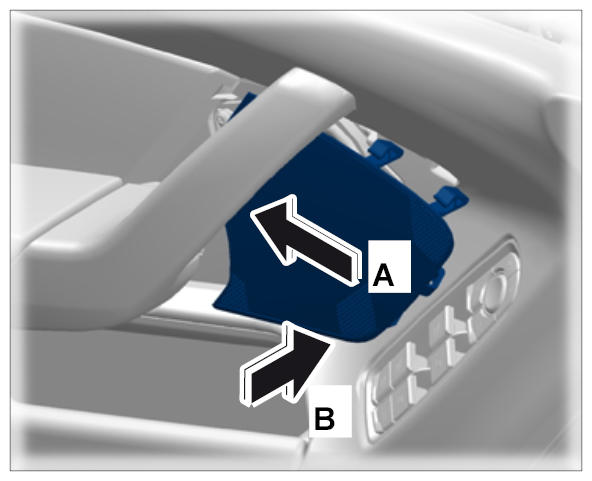

    Fig 3: Installing Loudspeaker Cover
    G09813814Courtesy of PORSCHE CARS NORTH AMERICA, INC.
