Removing SDARS Antenna

  1. Release electric plug connection -1-  (-a-  ) and disconnect it.
  2. Loosen fastening nut -2-  and remove SDARS antenna -3-  .

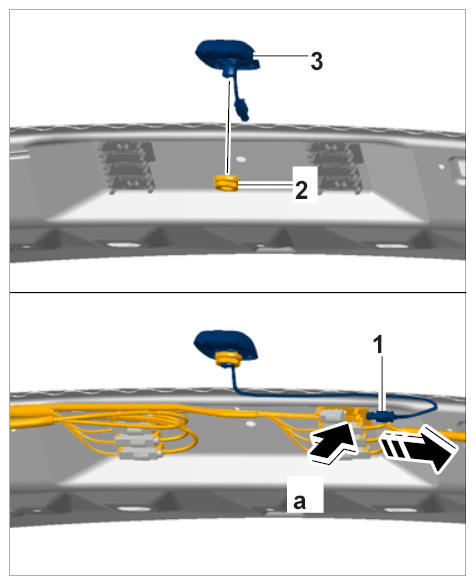

    3. Fig 1: Removing SDARS Antenna Electric Plug Connection
    G09813791Courtesy of PORSCHE CARS NORTH AMERICA, INC.
