Installing SDARS Antenna

  1. Position SDARS antenna -3-  and secure with fastening nut -2-  . Tightening torque 6 Nm (4.5 ftlb.) +/-0.9 %
  2. Connect electric plug connection -1-  until the connector engages securely.

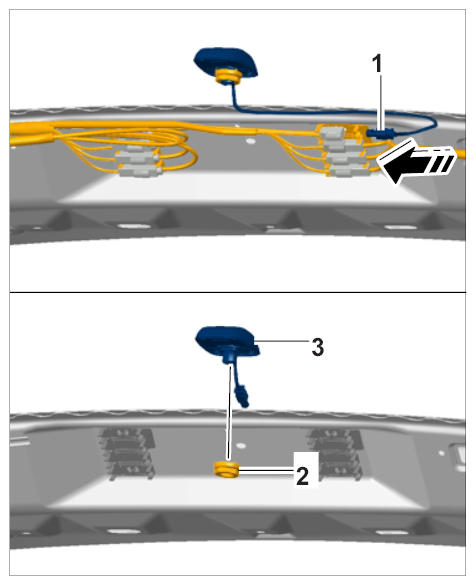

    3. Fig 1: Installing SDARS Antenna
    G09813790Courtesy of PORSCHE CARS NORTH AMERICA, INC.
