Installing Antenna Line (Connection Point In Roof To PCM)

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

• The new lines will be secured to the fastening points for the old lines  .
• The old wire harness remains installed in the vehicle.
• The old wire harness will only be disconnected/unplugged directly at the connected components.

Information

• When installing the wire harness, make sure the insulation of the line is not damaged.

1. Disconnect antenna line at the connection point in roof.
2. Release plug connection for antenna line -4-  at the PCM system and disconnect it.

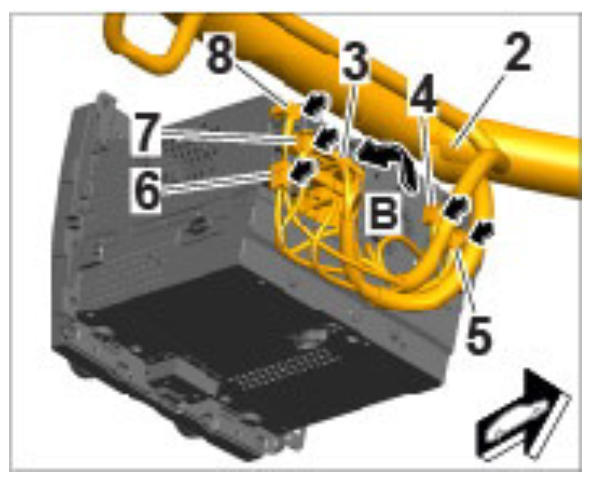

   Fig 1: Disconnecting Electric Plug Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Cut off the connectors on the damaged antenna line, then insulate it and tie it to the main wire harness.
4. Route the new antenna line along the main wire harness, guide it through the existing cable ducts and tie it to the main wire harness using tie-wraps.
5. Route the new antenna line at the connection point in the roof and secure it.
6. Plug in plug connection for antenna line -4-  at the PCM system and make sure that the locking mechanism engages securely.

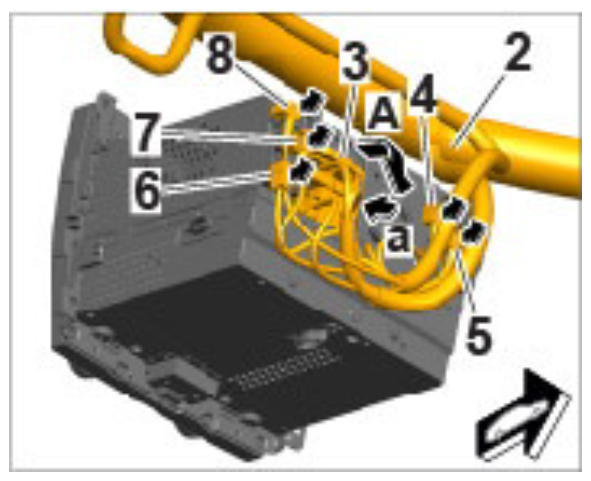

   Fig 2: Connecting Electric Plug Connections
