Installing Multimedia Interface

  1. Connect plug connections.

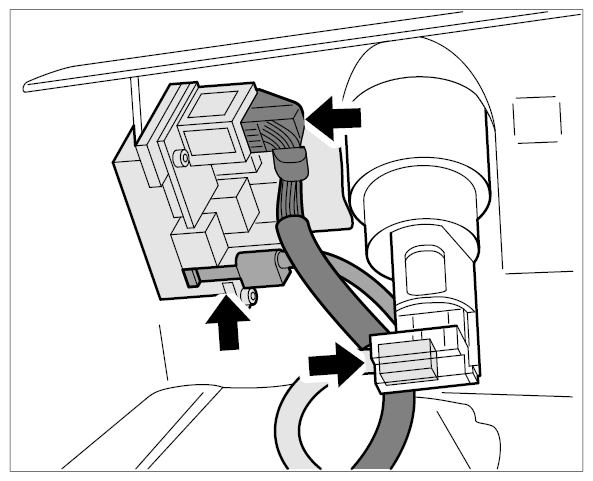

    Fig 1: Connecting Plug Connections
    G09813762Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Connect plug connections for multimedia interface until they engage securely.
    2. 1.2. Connect plug connection for plug socket.
    3. 1.3. Check that the plug connection for the plug socket is seated securely.
  2. Fit and clip in multimedia interface.

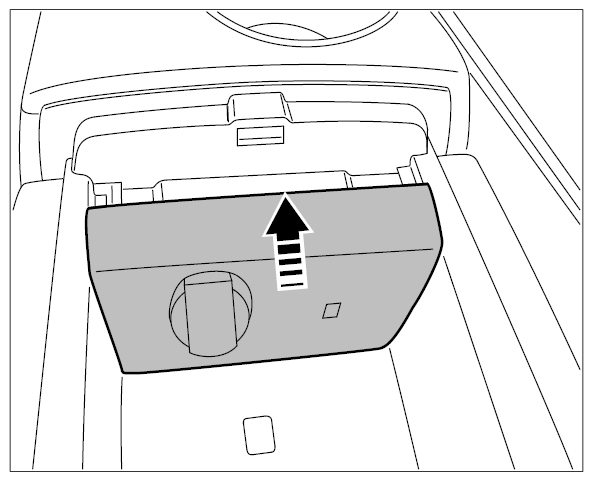

    Fig 2: Clipping In Multimedia Interface
    G09813763Courtesy of PORSCHE CARS NORTH AMERICA, INC.
