Removing Charging Socket

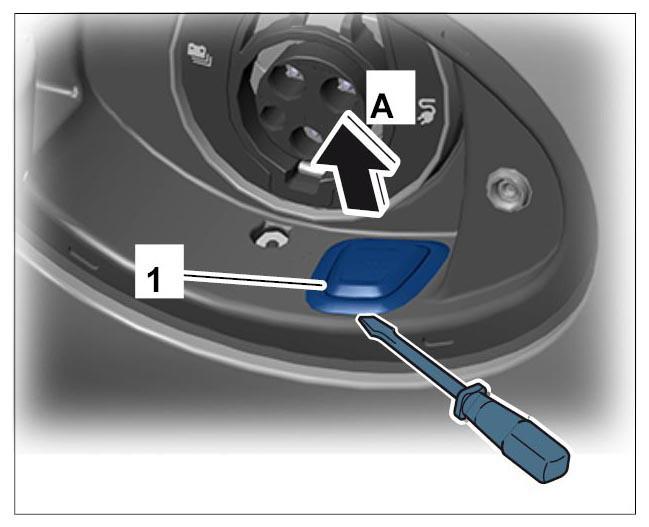

Carefully lever off switch -1- using a small screwdriver and unclip it -A- .

Fig 1: Removing Switch For Charging Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electric plug connection for the switch -1- and disconnect it. Remove switch from the charging socket.

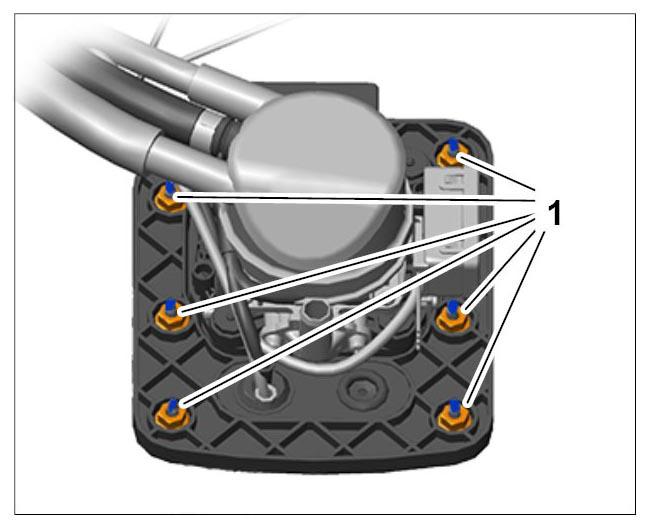

Loosen fastening nuts -1- on the charging socket and pull charging socket inwards and off.
1. 3.1. Release and disconnect electric plug connection at the actuator, if fitted.

  Fig 2: Identifying Charging Socket Fastening Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

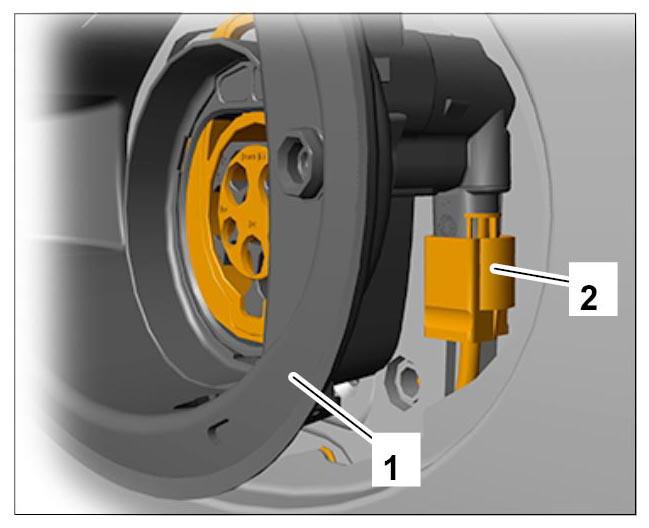

Carefully press the charging tray -1- outwards and release and pull off electric plug connection -2- .

Fig 3: Identifying Charging Tray And Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

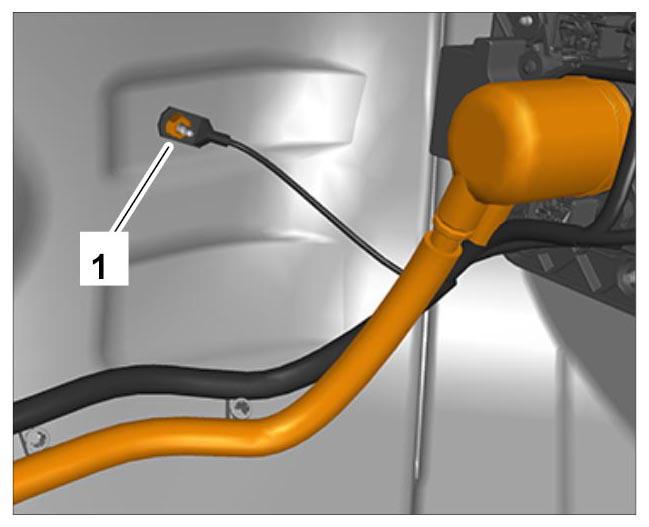

Disconnect ground strap -1- in the wheel housing.

Fig 4: Identifying Ground Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

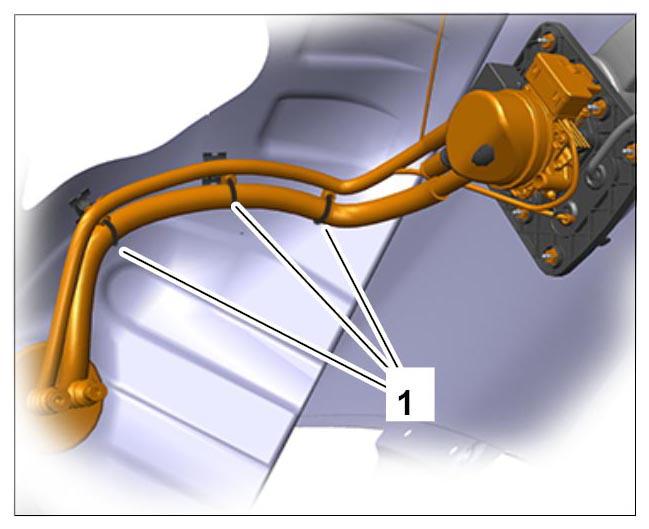

Loosen fixing clips -1- on the charging socket wire harness in the wheel housing.

Fig 5: Identifying Wire Harness In Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

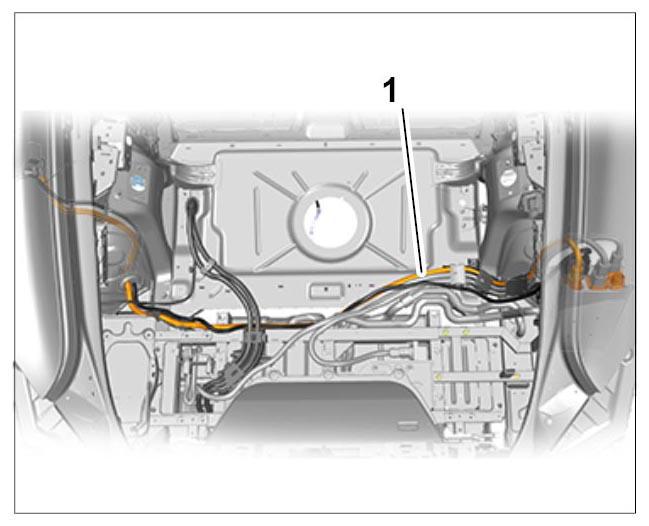

Disconnect and expose wire harness -1- in the luggage compartment.

Fig 6: Identifying Wire Harness In Luggage Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

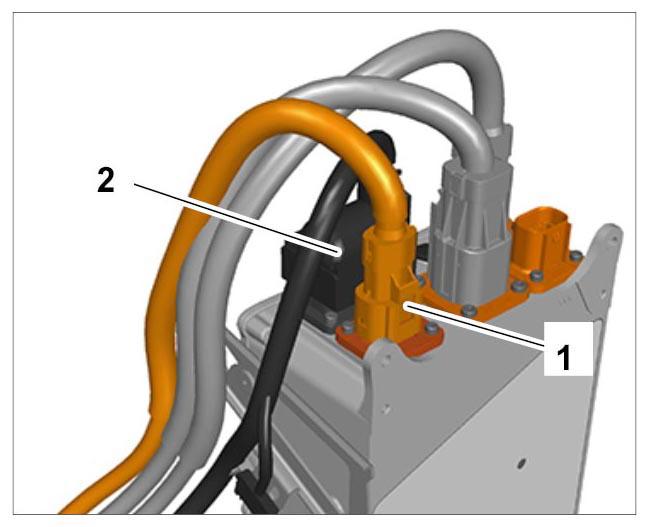

Disconnect high-voltage connector -1- at the high-voltage charger.
1. 8.1. Pry up and release locking lug on the high-voltage connector -1- using a small screwdriver.
2. 8.2. Disconnect high-voltage connector -1- .

  Fig 7: Identifying Connector On High-Voltage Charger
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electric plug connection -2- at the high-voltage charger and disconnect it.

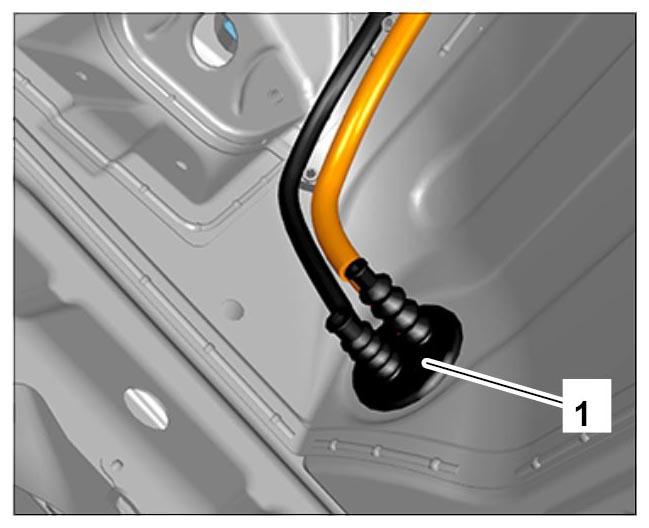

Pull wire harness through the rubber sleeve -1- into the wheel housing and remove charging socket from the vehicle.

Fig 8: Identifying Rubber Sleeve In Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
