Installing New Service Disconnector

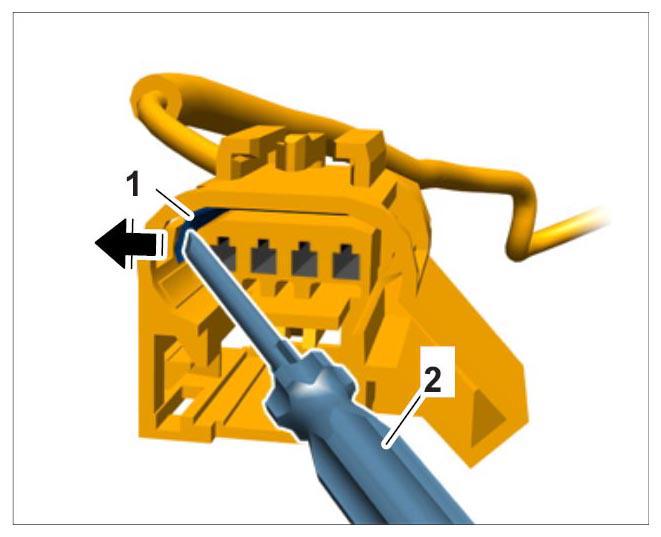

1. 1.1. Release and pull off cover -1-  on the new service disconnector -3-  using a small screwdriver -2-  .
   Fig 1: Detaching Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

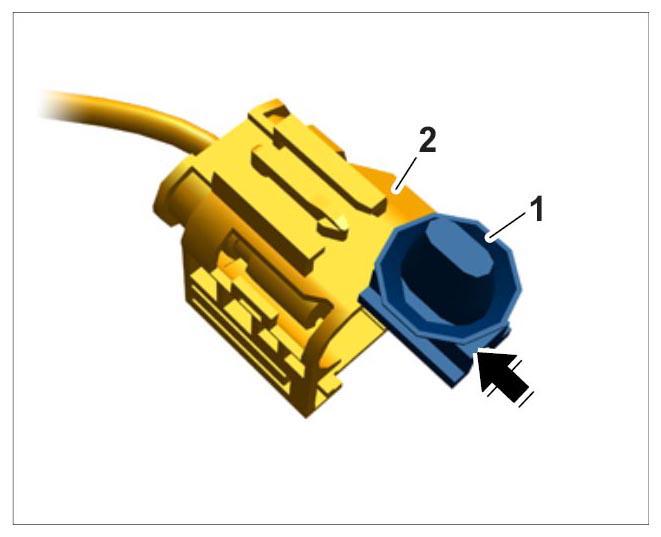

2. 1.2. Secure clips -1-  on the new service disconnector -2-  .
   Fig 2: Securing Clips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

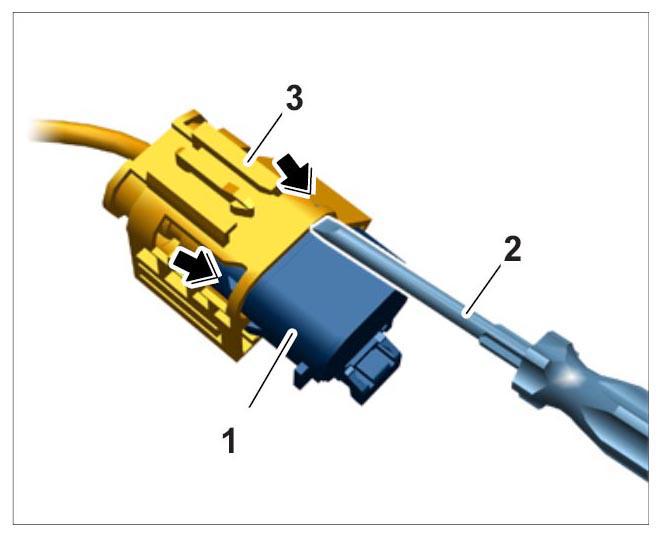

3. 1.3. Release secondary lock on the new service disconnector using a small screwdriver.
   Fig 3: Releasing Secondary Lock

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Check that the pins (upper locking lugs) are aligned correctly

If the locking lugs do not lock with an audible click, bend up the locking lugs at the pin first using press-out tool

1. 2.1. Red cable in pin 1
2. 2.2. Red/white cable in pin 2
3. 2.3. Grey/red cable in pin 3
4. 2.4. Yellow cable in pin 4
