Installing Front Three-Point Belt

Information

Always replace the fastening screws on the three-point seat belt. The micro-self-locking screws must not be treated (e.g. greased) or loosened and then screwed on again.

Information

Once the fastening screw has been tightened, the belt lug must level out on its own in a vertical position or in the relevant support direction.

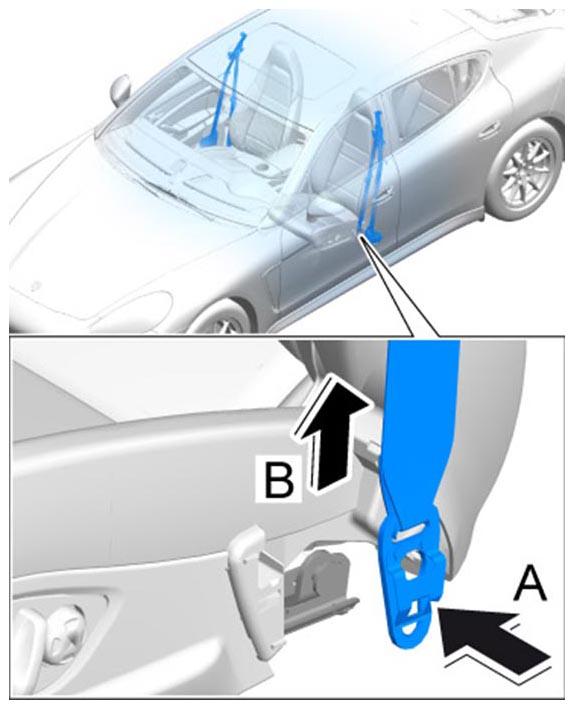

Fig 1: Identifying Installation Position Of Front Three-Point Belt

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Position belt roller -arrow A-  .
2. Tighten fastening screw -1-  (-arrow B-  ). → Tightening torque: 50 Nm (37 ftlb.)

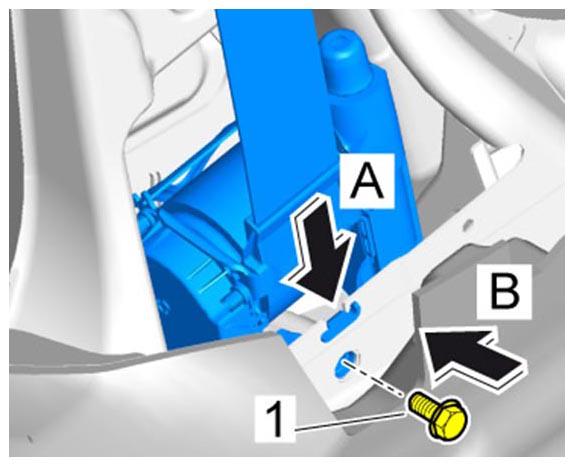

   Fig 2: Positioning Belt Roller

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Do not twist the three-point belt during installation!

3. Push through seat belt mount and seat-belt buckle upwards behind the retaining bar.
4. Turn belt lug and push it upwards behind the retaining bar.

   Information

   When routing the electric lines, make sure that they are not routed through the belt-coiling area.

5. Fasten belt lug on the vertical adjustment device with the fastening screw -1-  (-arrow-  ). → Tightening torque: 50 Nm (37 ftlb.)

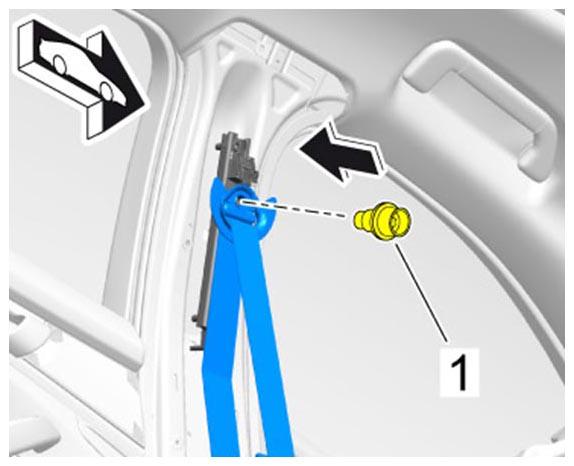

   Fig 3: Fastening Belt Lug On Vertical Adjustment Device

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   When routing the electric lines, make sure that they are not routed through the belt-coiling area.

6. Plug in electric plug connection -1-  (-arrow A-  ) and close the locking mechanism -arrow b-  .

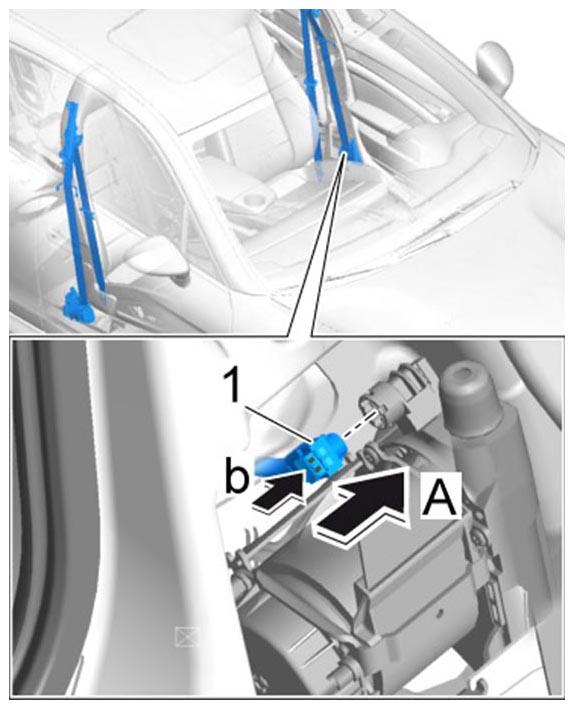

   Fig 4: Identifying Connector And Locking Mechanism

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Press the seat belt mount towards the seat -arrow A-  and fit it on the retaining pin.
8. Pull the seat belt mount upwards -arrow B-  until the retaining clip locks with an audible click.

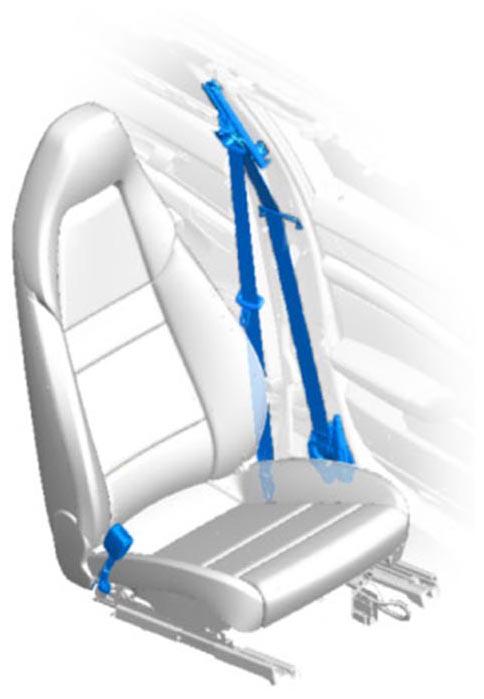

   Fig 5: Installing Seat Belt Mount
