Removing Spark Plugs

→ Only check electrode gap of spark plugs, but do not bend them.

→ Spark plugs with an incorrect electrode gap must be replaced.

Information

• Only use spark plugs approved by Porsche AG!
• Check electrode gap before screwing in a new spark plug.

1. Loosen spark plugs using special tool spark plug socket and extension 3122 B  . → REMOVING SPARK PLUG

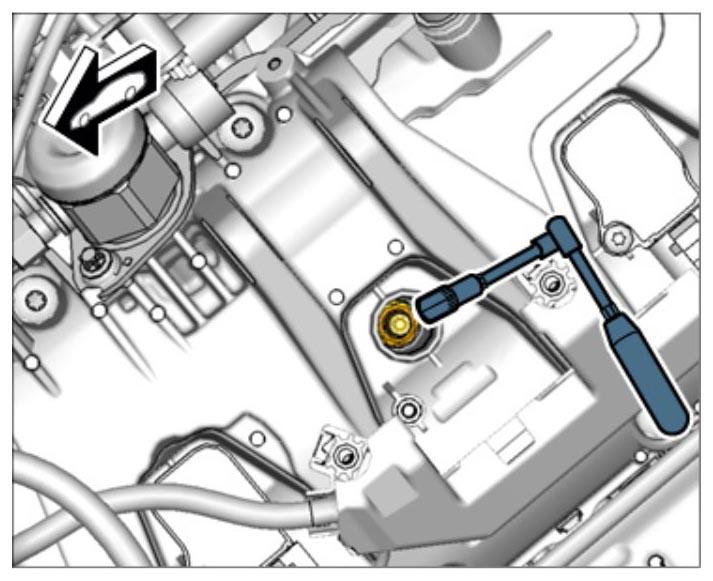

   Fig 1: Removing Spark Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. The spark plugs for cylinders 3 and 6 need a shorter tool setup. Use a medium extension with a cardan joint and spark plug socket for this.
2. Check electrode gap. → Control value: 0.8 mm+/-0.05 mm

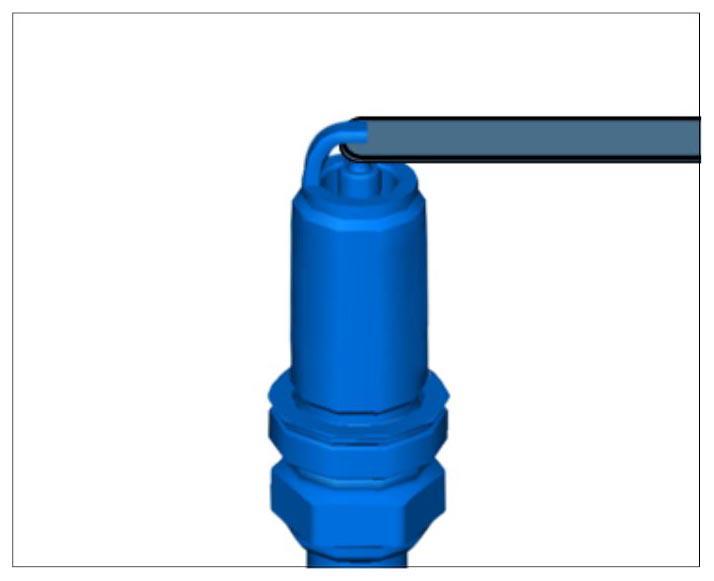

   Fig 2: Checking Electrode Gap Of Spark Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   → Electrode gap of spark plug
