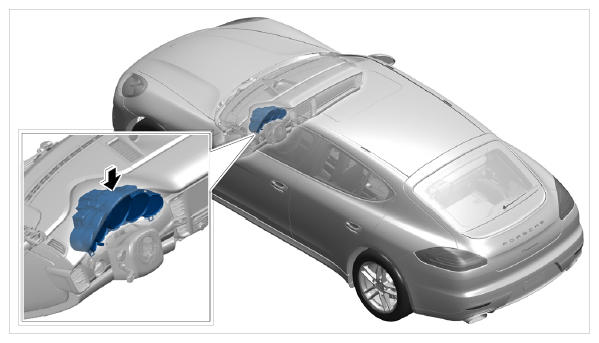

Removing Instrument Cluster
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Loosen the steering wheel adjustment, put the steering wheel in the front-most and lowest position and lock the steering wheel adjustment.

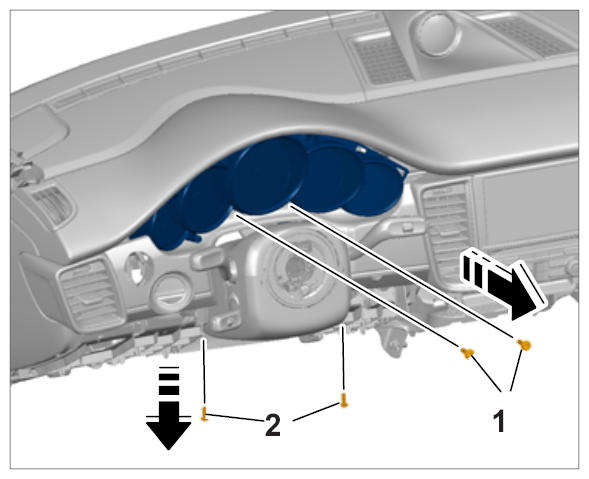

- Unscrew and remove fastening screws -1-
and -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove instrument cluster.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

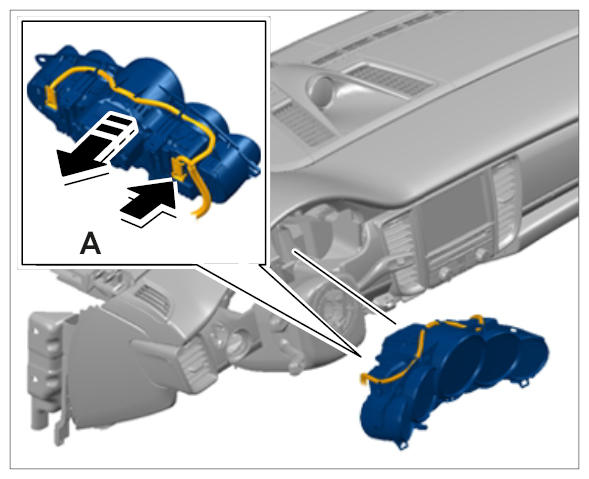

- Release electric plug connections on the instrument cluster -A-
and unplug them.
- Unclip dashboard inset (cover) at the top left and right on the instrument cluster. → Removing Dashboard Insert
