Removing All-Wheel Final Drive

Information

The fastening screw can only be removed and fitted when the assembly is removed.

Information

• Transmission oil can leak out when removing the all-wheel final drive.

1. Remove engine mount. → 103519 REMOVING AND REINSTALLING ENGINE MOUNT
2. Detach cross shaft engine carrier from engine, twist it and pull it out by approx. 20 cm.
3. Remove Heat shield from all-wheel final drive.
4. Fit impact puller 9799  to the groove in the connecting shaft using 4 screws.

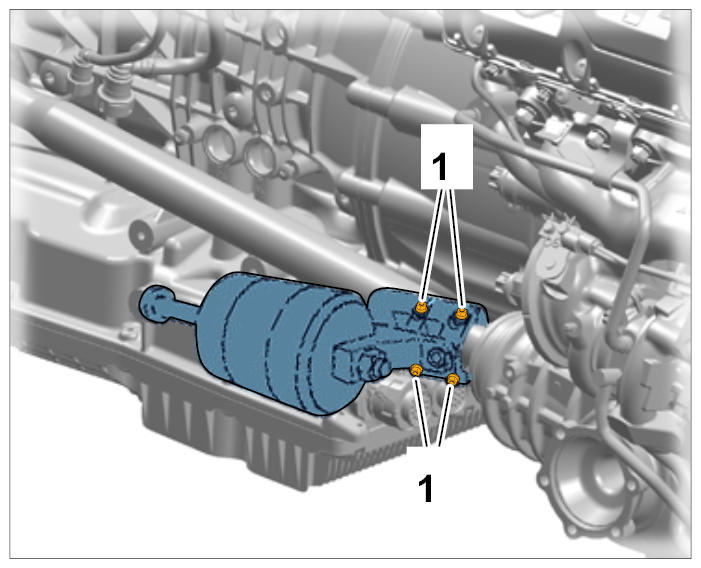

   Fig 1: Fitting Tool

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove connecting shaft from the all-wheel final drive using impact puller 9799  . This pushes the connecting shaft into the PDK transmission.

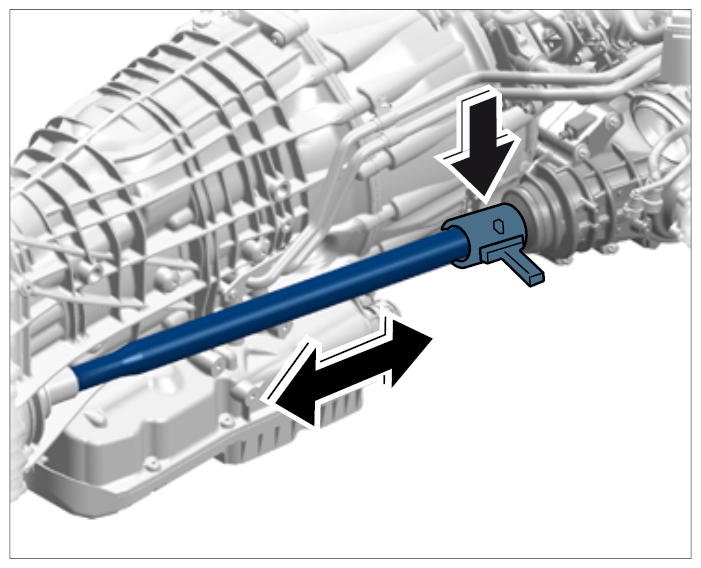

   Fig 2: Removing And Fitting Connecting Shaft

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove air-conditioning compressor. →REMOVING AIR-CONDITIONING COMPRESSOR
7. Remove hydraulic pump.→REMOVING HYDRAULIC PUMP
8. Unscrew the left side fastening screws securing the final drive to the engine and pull out the final drive together with the transmission shaft.

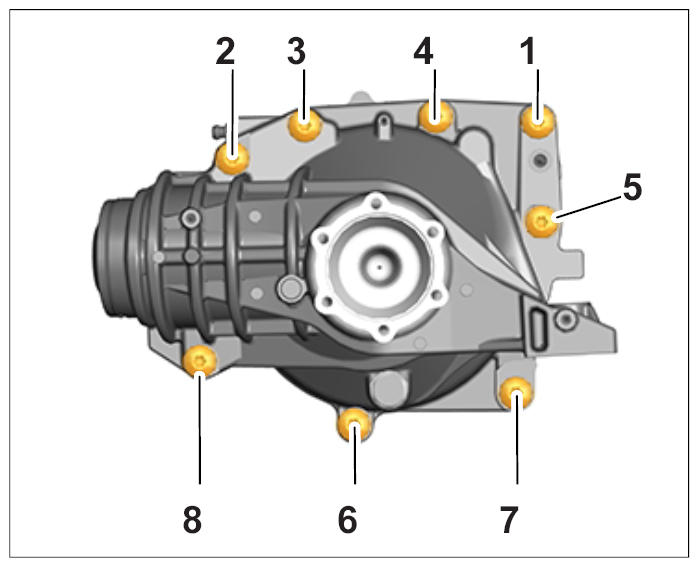

   Fig 3: Identifying Mounting, Final Drive To Engine, Left Side

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Unscrew the right side fastening screws securing the final drive to the engine and remove the final drive.

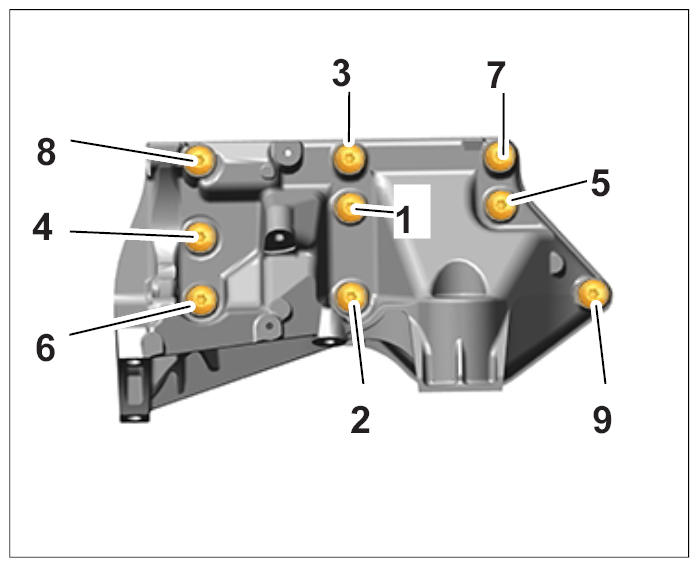

   Fig 4: Identifying Mounting, Final Drive To Engine, Right Side

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
