Installing All-Wheel Final Drive

Information

The fastening screw can only be removed and fitted when the assembly is removed.

Information

• Transmission oil can leak out when removing the four-wheel final drive.

1. Attach right side of final drive to engine.
   1. 1.1. Tighten fastening screws for all-wheel final drive in the prescribed sequence. → Mounting, final drive to engine, right side Tightening torque 65 Nm (48 ftlb.)

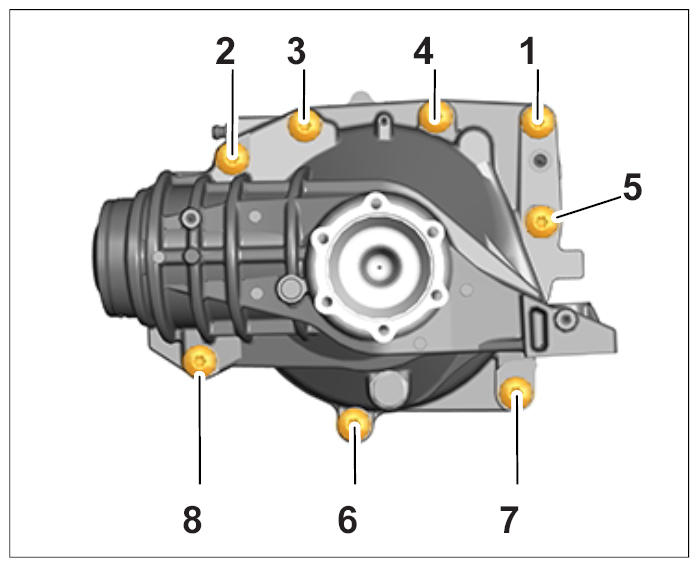

      Fig 1: Identifying Mounting, Final Drive To Engine, Right Side

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Attach cross-shaft carrier to left side of engine.
   1. 2.1. Carefully guide the final drive transmission shaft into the oil pan shaft channel.

      Tighten the cross-shaft carrier threaded joints in the prescribed sequence. → Mounting, final drive to engine, left side Tightening torque 65 Nm (48 ftlb.)

      Thinly coat the inner splines at the end of the connecting shaft with AntiSeize  .

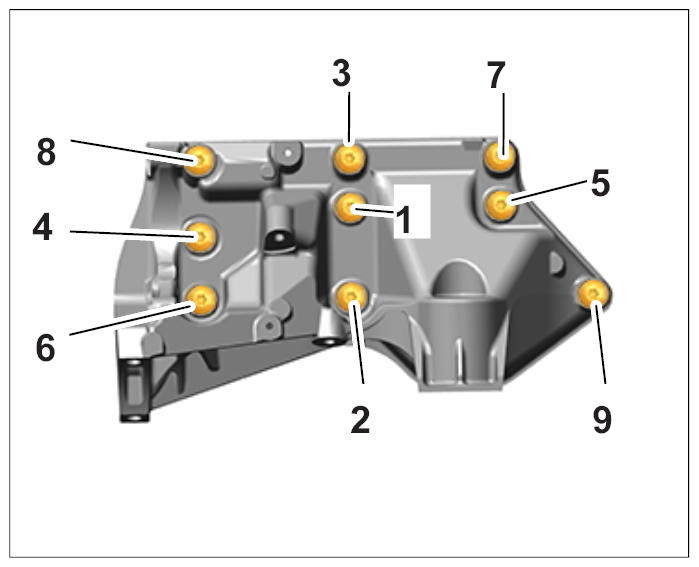

      Fig 2: Identifying Mounting, Final Drive To Engine, Left Side

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Replace circlip on input flange of all-wheel final drive.

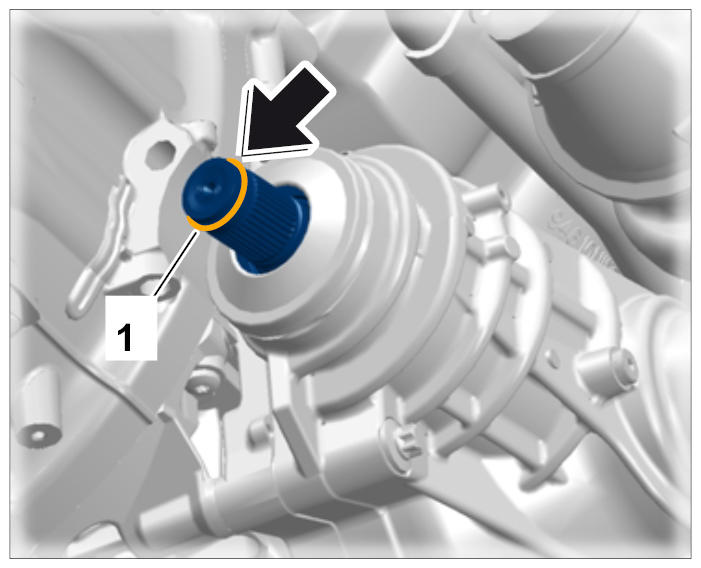

   Fig 3: Locating Circlip On All-Wheel Flange

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Install hydraulic pump.→ INSTALLING HYDRAULIC PUMP
5. Install air-conditioning compressor. → INSTALLING AIR-CONDITIONING COMPRESSOR
6. Install engine mount. → 103519 REMOVING AND REINSTALLING ENGINE MOUNT
8. Fit engine mount on cross-shaft engine carrier. → 103519 REMOVING AND REINSTALLING ENGINE MOUNT
9. Fit the impact puller 9799  using 4 screws -1-  to the groove in the connecting shaft.

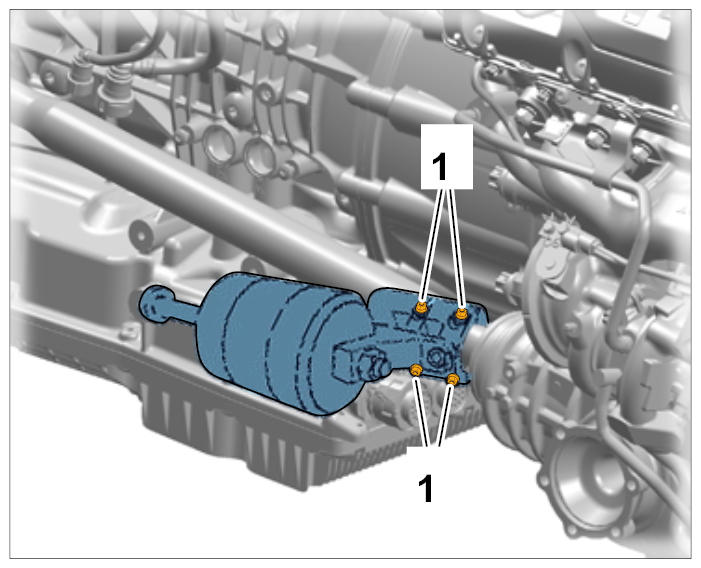

   Fig 4: Fitting Tool

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Attach connecting shaft to the all-wheel final drive and fit using impact puller 9799  until the ring → Removing and fitting connecting shaft  is visible on the transmission.

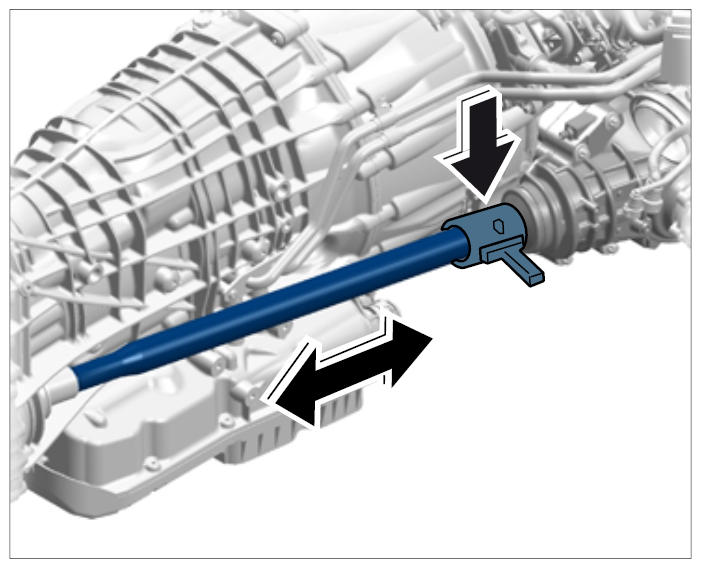

    Fig 5: Removing And Fitting Connecting Shaft

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Remove impact puller 9799  .
12. Once you have fitted the connecting shaft, check that it is locked correctly.
13. Install the heat shield for the all-wheel final drive.
