Removing Sealing Ring For Cardan Flange

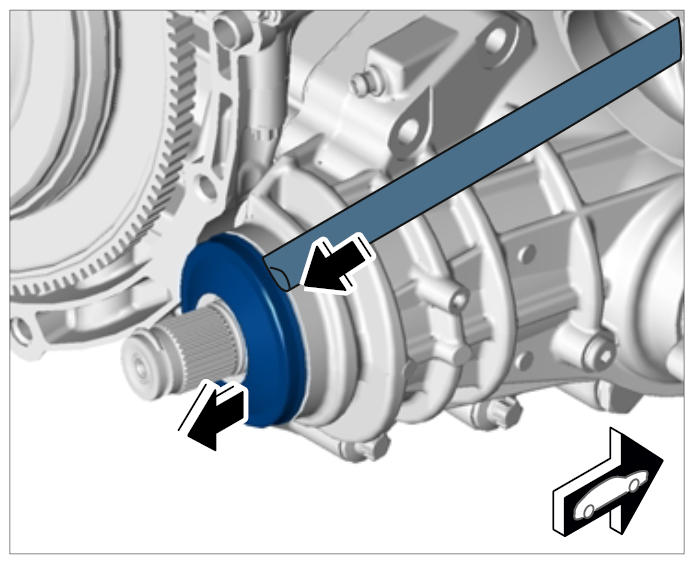

Force off dust boot using a suitable tool, e.g. an aluminum bar.

Fig 1: Removing Dust Boot
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

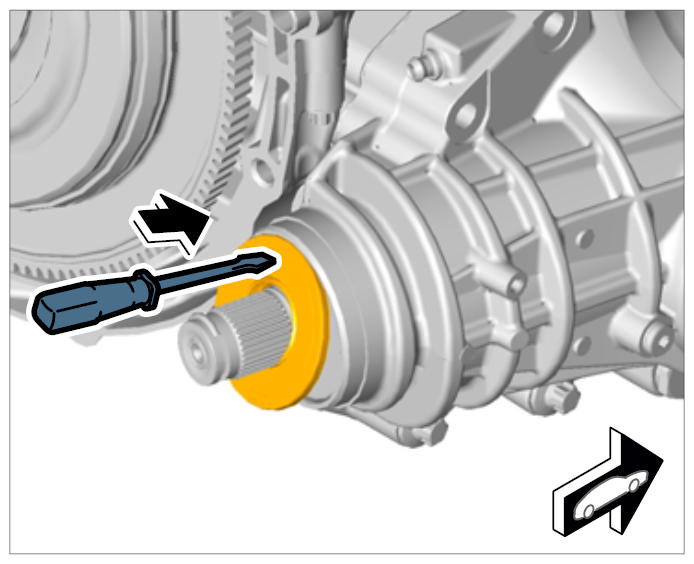

Tap the sealing ring in slightly on one side until it tilts.

Fig 2: Tapping Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

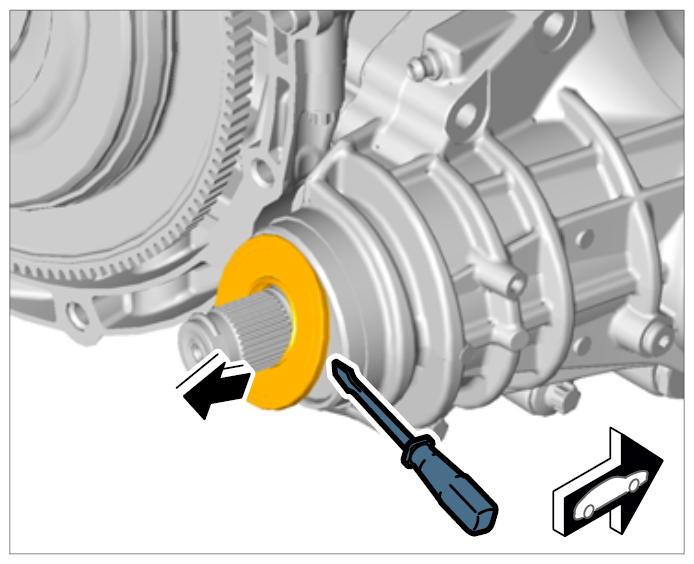

Remove sealing ring.

Fig 3: Removing Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
