Moving Front Lid Into Service Position

  1. Open the lid (pneumatic spring -1-  is in normal position -2-  ).
  2. Press the locking button -2-  and open the lid until the locking button locks in service position.

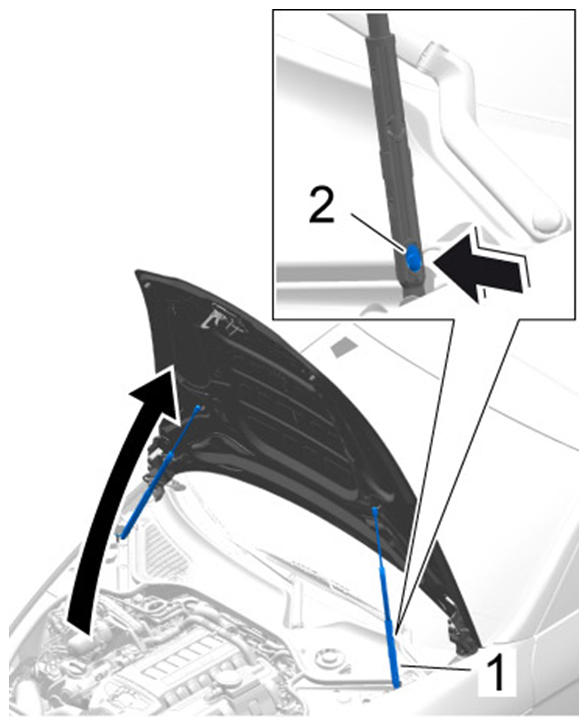

    3. Fig 1: Opening Lid
    G09810113Courtesy of PORSCHE CARS NORTH AMERICA, INC.
