Removing Outer Side Member

Information

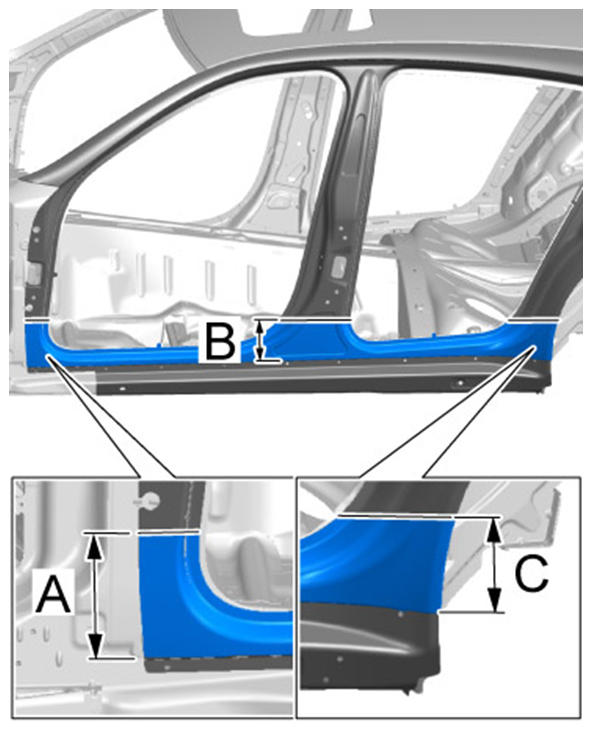

Mark cuts A, B and C  in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

1. Mark and make cuts.
   Fig 1: Outer Side Member Component Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

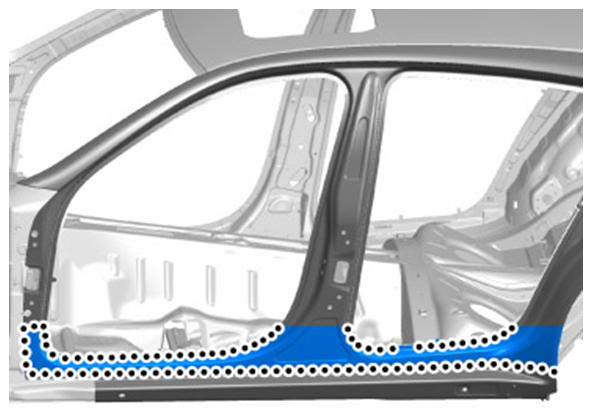

2. Drill out spotwelds using spotweld drill Nr.129  .
   Fig 2: Identifying Spotwelds For Drilling

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

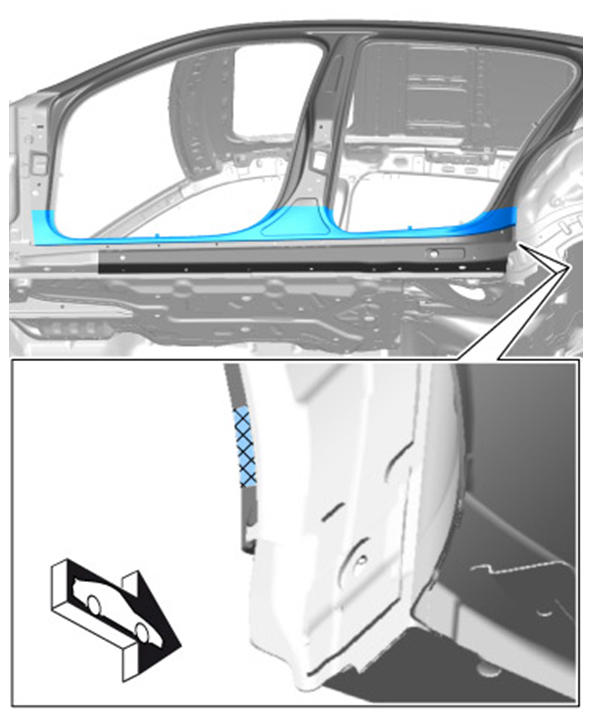

3. Bend up edge of wheel arch.
   1. 3.1. Heat up connection areas using a hot-air gun.
   2. 3.2. Bend up edge of wheel arch.
      Fig 3: Removing Outer Side Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

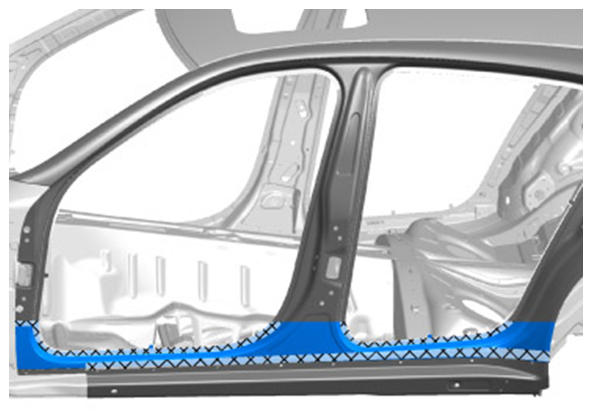

4. Heat up connection areas using a hot-air gun.
   Fig 4: Identifying Heat Up Connection Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove outer side member.
