Preparing A-Pillar For Installation

Fit the A-pillar.

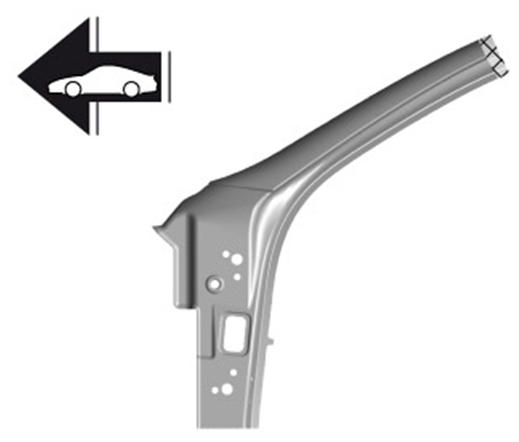

1. 1.1. Cut the A-pillar at the transition point to the body leaving an overlap of 30 mm.

  Fig 1: Preparing A-Pillar For Installation
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

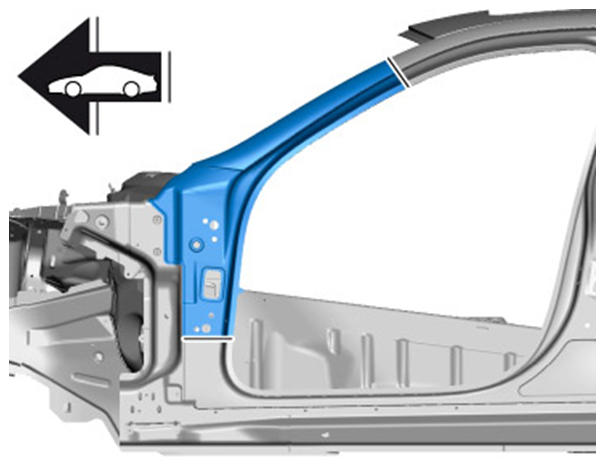

2. 1.2. Fit the A-pillar.
  Check gap dimensions. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS

  Fig 2: Preparing A-Pillar For Installation
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Make cuts through the A-pillar and body in the overlap areas.
4. 1.4. Remove A-pillar.

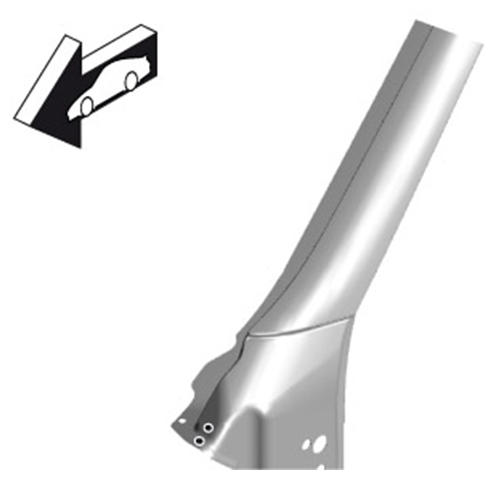

Drill a hole for plug-welding using inert gas using an 8.0-mm drill bit.

Fig 3: Preparing A-Pillar For Installation
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Make 5 new holes for plug-welding using inert gas using a body hole punch.

Fig 4: Preparing A-Pillar For Installation (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 5: Preparing A-Pillar For Installation (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

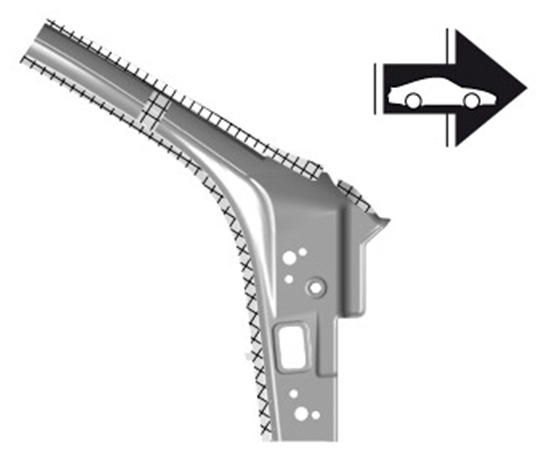

Prepare connection areas for bonding.

Fig 6: Preparing A-Pillar For Installation
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

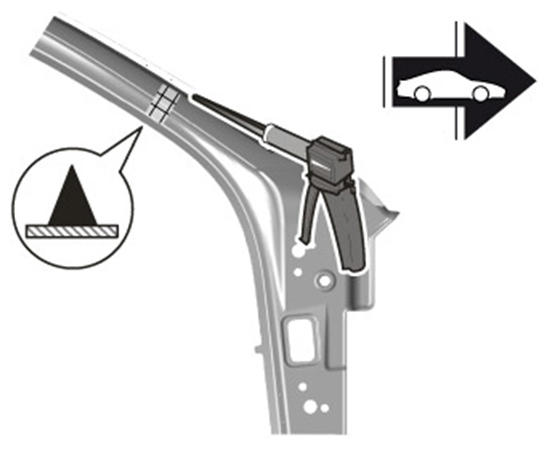

Apply 2K acoustic body filler foam "AFS Vario" . → 5X00IN WORKING WITH BODY FOAM FILLER

Fig 7: Preparing A-Pillar For Installation
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
