Preparing Front Side Member For Installation

1. 1.1. Apply vertical markings to the inside and outside of the side member -X-  . → Distance: 15 mm

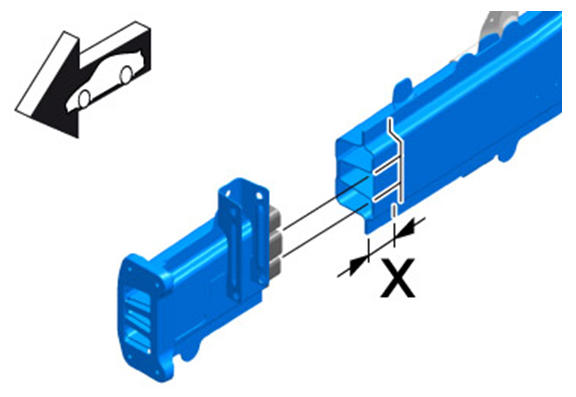

   Fig 1: Identifying Side Member Marking

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • To mark the installation position, insert the new part into the side member and mark the center of the chambers on the side member with horizontal lines  .
2. 1.2. Also mark the center of the chambers on the side member.

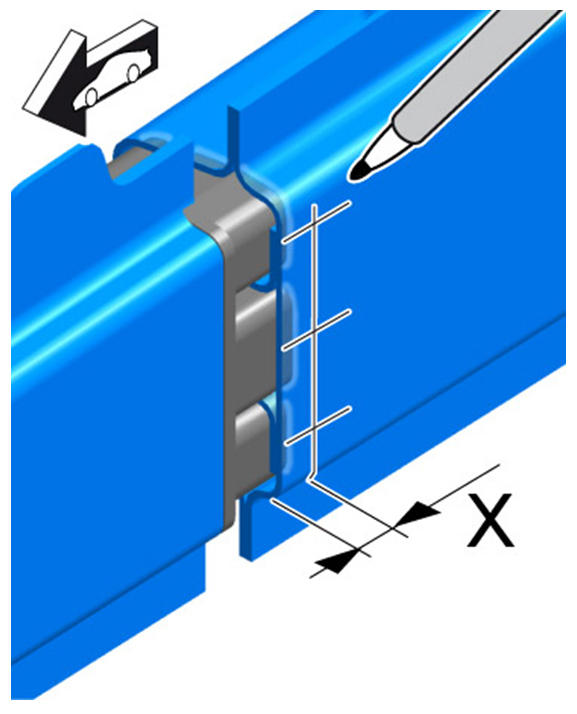

   Fig 2: Marking Side Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

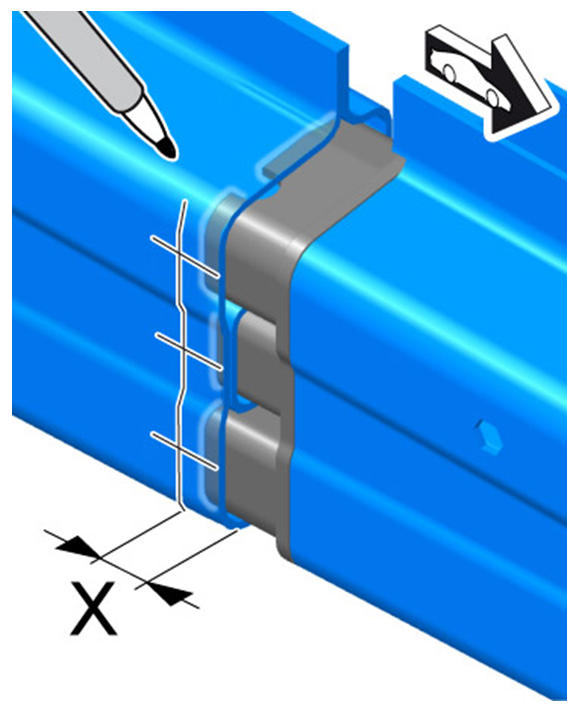

   Fig 3: Marking Side Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The bores in the chambers must be centered. If punch rivets are in the way, place the bore at a slightly offset position with respect to the punch rivets  .

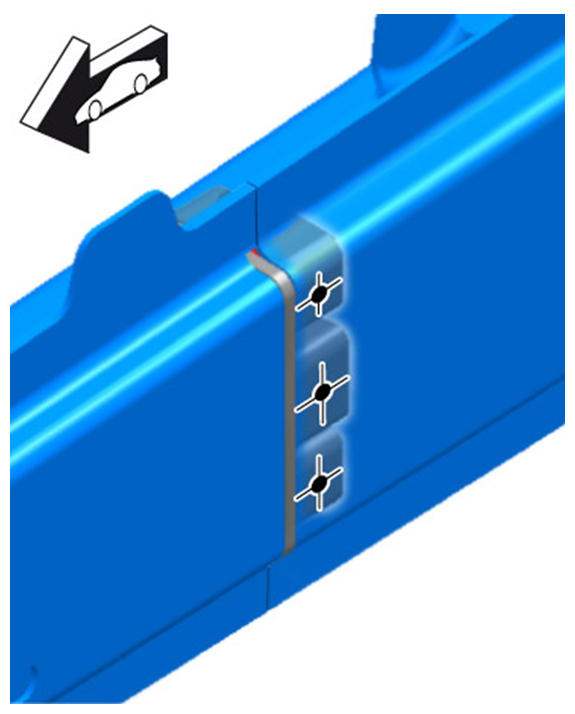

1. 3.1. Position bores as shown.

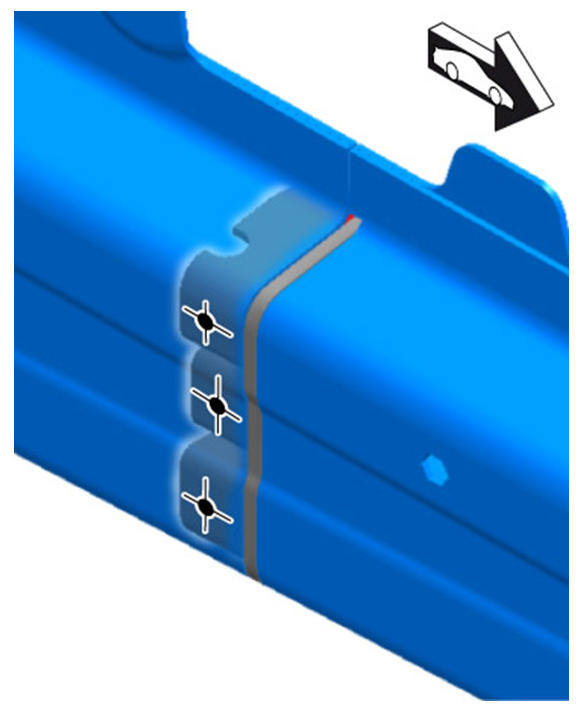

   Fig 4: Identifying Bores Position On Side Member (Right)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 5: Identifying Bores Position On Side Member (Left)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Drill all bores through the sub-part and side member using a 4.7-mm drill bit.
3. 3.3. Remove sub-part.
4. 3.4. Drill bores on the side member using an 8-mm drill bit.

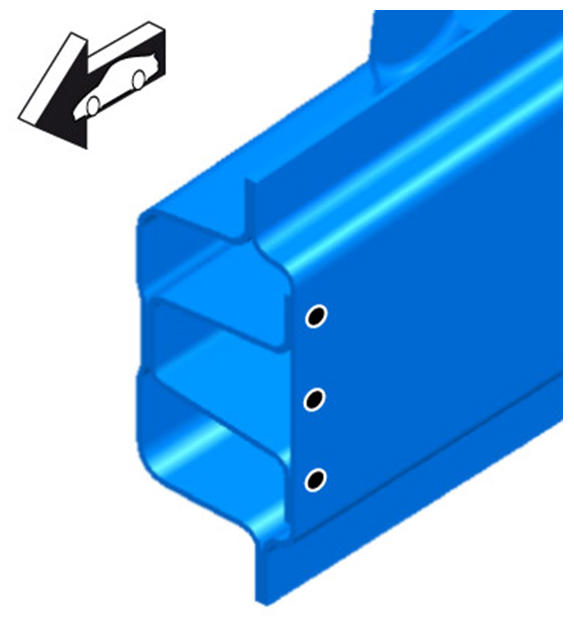

   Fig 6: Identifying Bores Drilling Areas Of Side Member (Right)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

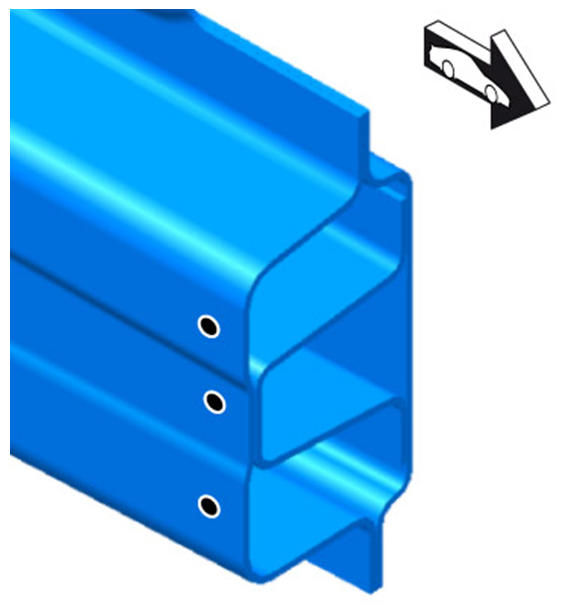

   Fig 7: Identifying Bores Drilling Areas Of Side Member (Left)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

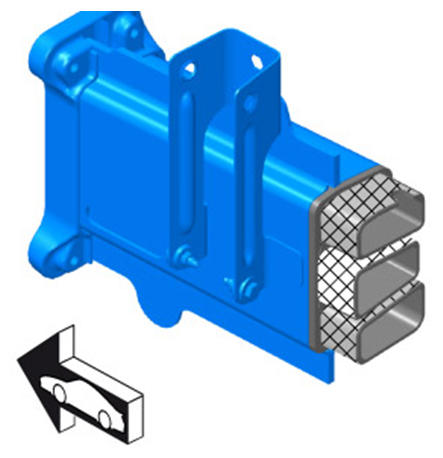

Fig 8: Preparing Side Member For Installation (Right)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

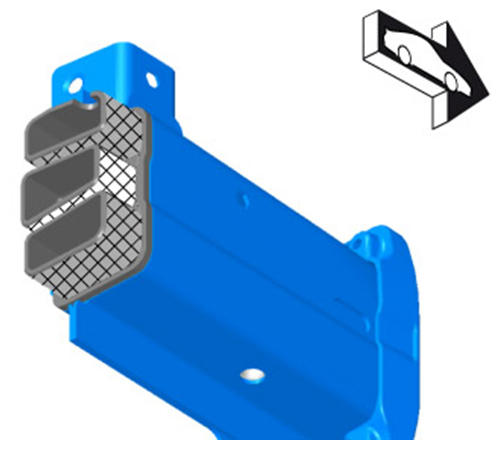

Fig 9: Preparing Side Member For Installation (Left)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
