Preparing Spring Strut Mount For Installation

Fit spring strut mount and secure in installation position with the straightening bracket.
Information

Do not drill a hole in the marked area.
1. 1.1. Drill holes for rivets through the existing holes → Diameter: 6.6 mm .

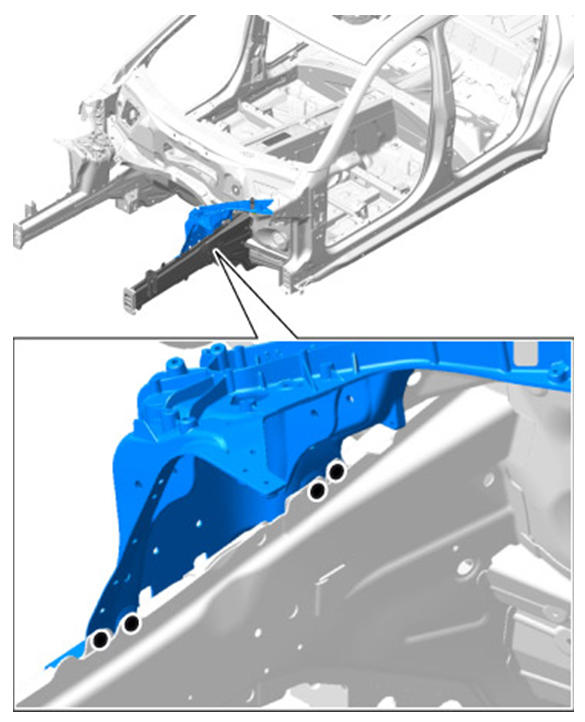

  Fig 1: Preparing Spring Strut Mount For Installation
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

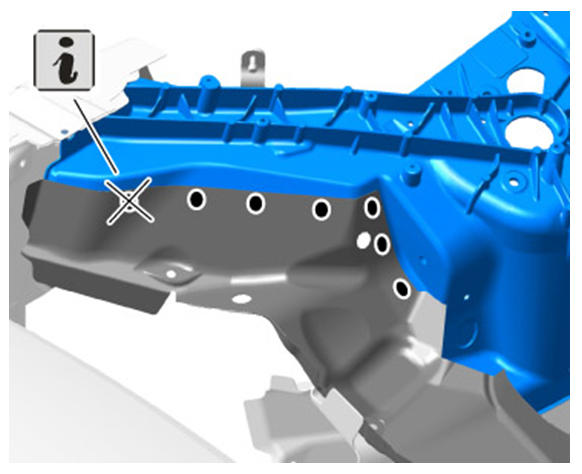

  Fig 2: Preparing Spring Strut Mount For Installation
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Arrange bore holes as shown. The bores must be offset with respect to the original punch rivet positions. More rivets are set during installation than in the original setup.
2. 1.2. Drill new holes for rivets → Diameter: 6.6 mm .

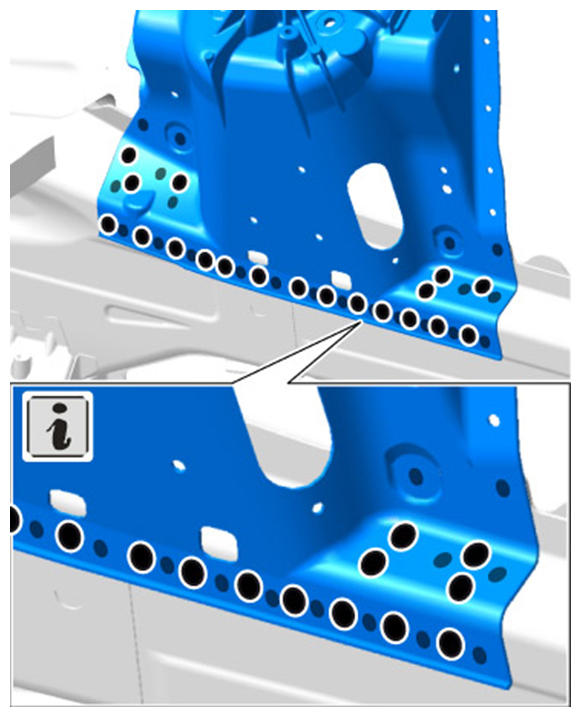

  Fig 3: Identifying Holes For Rivets On Spring Strut Mount (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

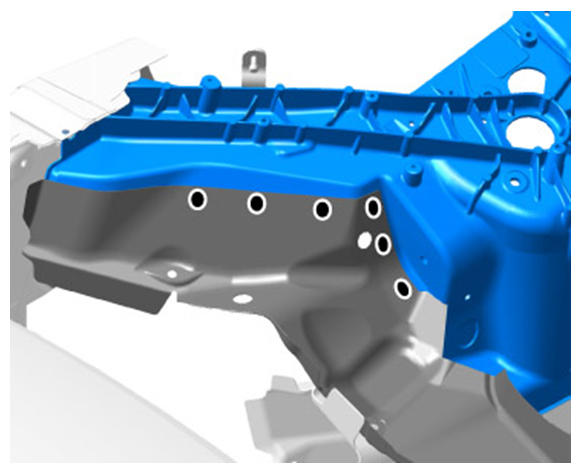

  Fig 4: Identifying Holes For Rivets On Spring Strut Mount (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

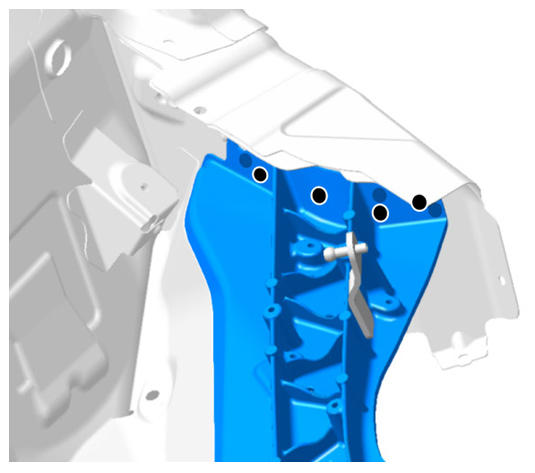

  Fig 5: Identifying Holes For Rivets On Spring Strut Mount (Upper View)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Countersink bores for installing countersunk rivets Countersink Nr.202 .

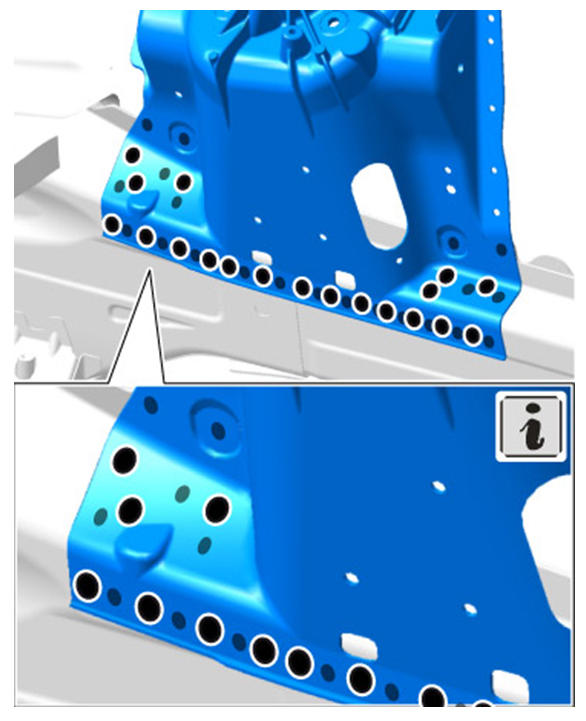

Fig 6: Identifying Countersink Bores For Installing Countersunk Rivets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
De-burr bore holes on both sides.
Prepare connection areas for bonding.

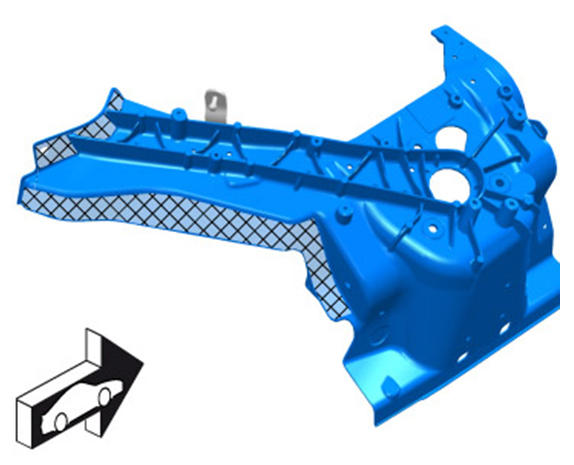

Fig 7: Identifying Connection Areas For Bonding (Side View)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

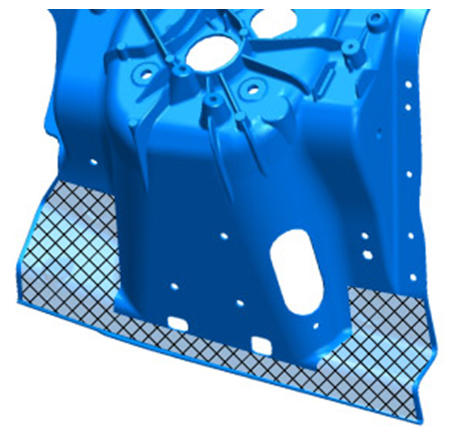

Fig 8: Identifying Connection Areas For Bonding (Upper View)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
