Installing Rear Power Window Motor

  1. Position power window motor and push into the teeth.
  2. Screw in fastening screws -1-  .
  3. Insert plug connection -A-  , until it engages securely.

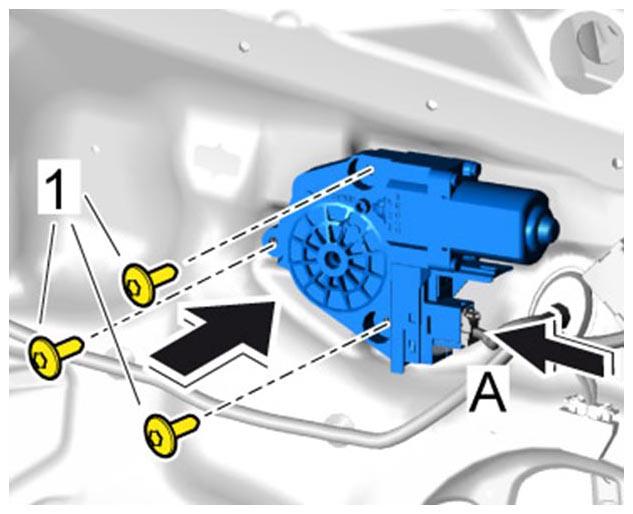

    4. Fig 1: Installing Power Window Motor
    G09811059Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Perform a function test.
  5. Teach end positions of power window motor.
    1. 5.1. Pull rocker switch and fully close window.
    2. 5.2. Pull rocker switch again. (Upper end position is stored)
    3. 5.3. Press rocker switch and fully open window.
    4. 5.4. Press rocker switch again. (Lower end position is stored)
