Adjusting Rear Side Window
- Adjust side window.
- 1.1. Fit and close the door window.

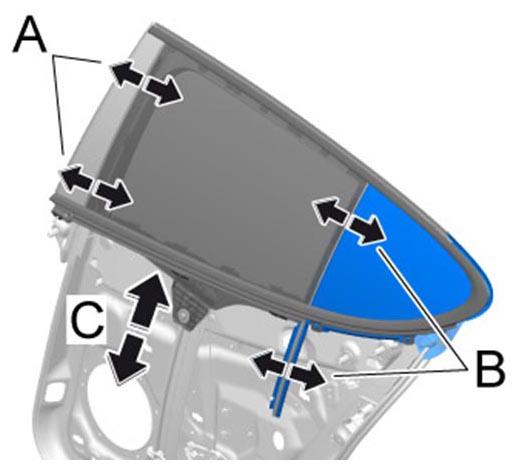

- 1.2. Position door window parallel to the B-pillar trim -A-
.
- 1.3. Position side window parallel to the door window -B-
.
- 1.4. Make sure that the B-pillar trim is parallel to the side window.
- 1.5. Check that the door window can move freely -C-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

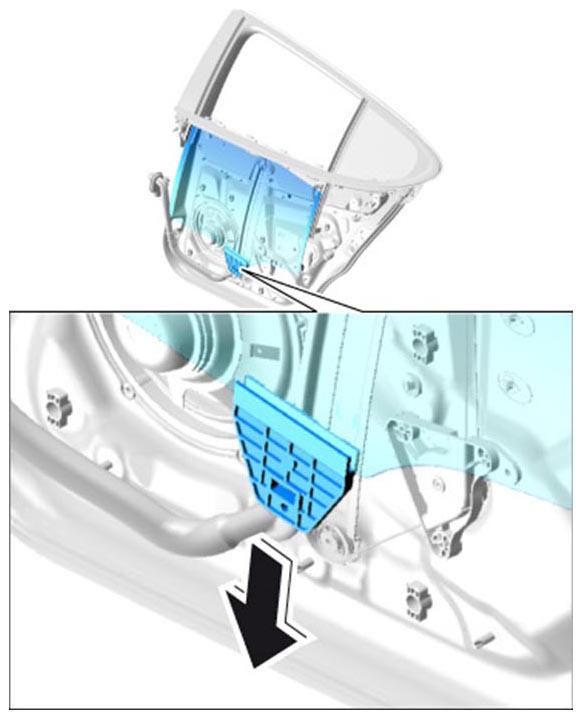

- 1.6. Remove door window glass.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

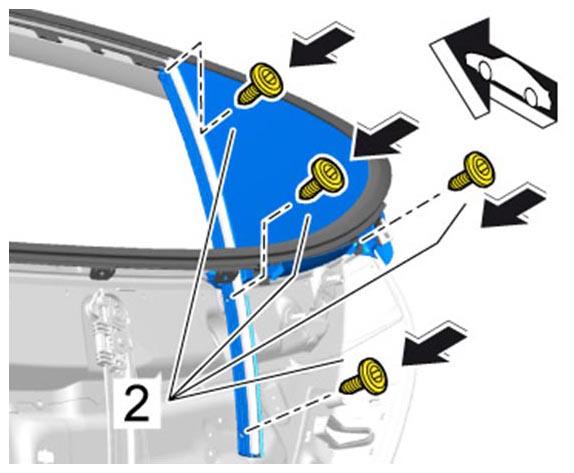

- 1.7. Tighten fastening screws -2-
for the side window → Tightening torque: 3.5 Nm (2.5 ftlb.)+10°
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
