Removing A-Pillar Trim Panel

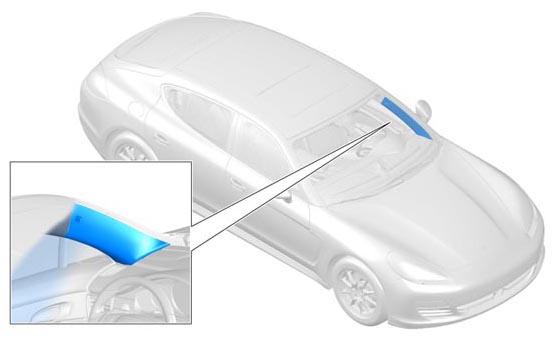

Fig 1: Identifying A-Pillar Trim Panel
G09812256Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Open cap -1-  on the A-pillar trim panel.
  2. Unscrew fastening screw -2-  .

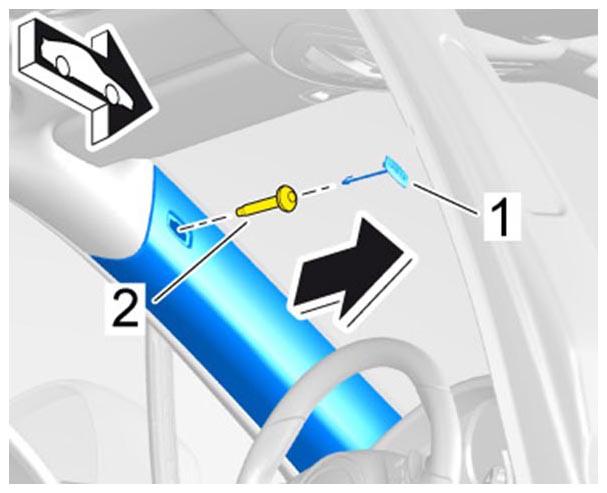

    3. Fig 2: Detaching A-Pillar Mounting
    G09812257Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unclip A-pillar trim panel close to the side hook -1-  (-arrow-  ).

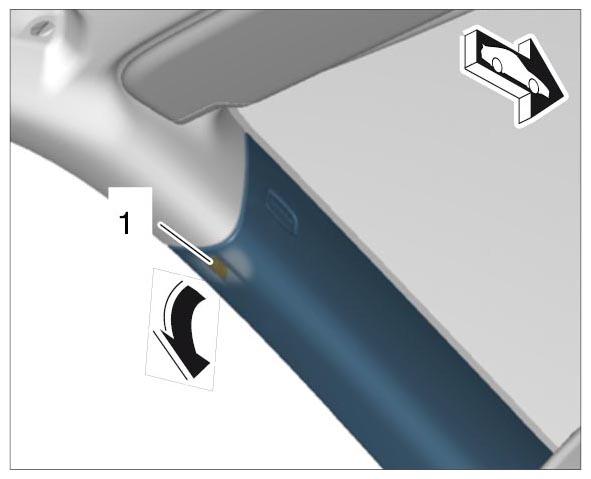

    Fig 3: Unclipping A-Pillar Trim Panel Side Hook
    G09812258Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Loosen A-pillar trim panel.

    Information

    To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

    1. 4.1. Loosen fixing clips -3-  .

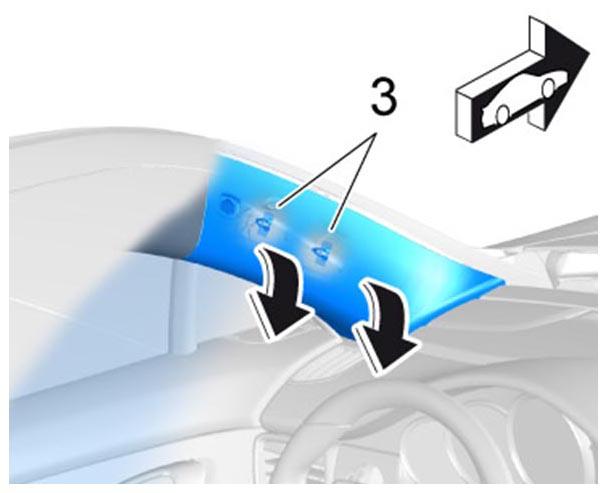

      2. Fig 4: Loosening A-Pillar Trim Panel
      G09812259Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 4.2. Guide a plastic wedge into the joint between the A-pillar trim panel and front side panel trim.
    3. 4.3. Unclip A-pillar trim panel by turning the plastic wedge -A-  .
    4. 4.4. Remove A-pillar trim panel in an upward direction -B-  .

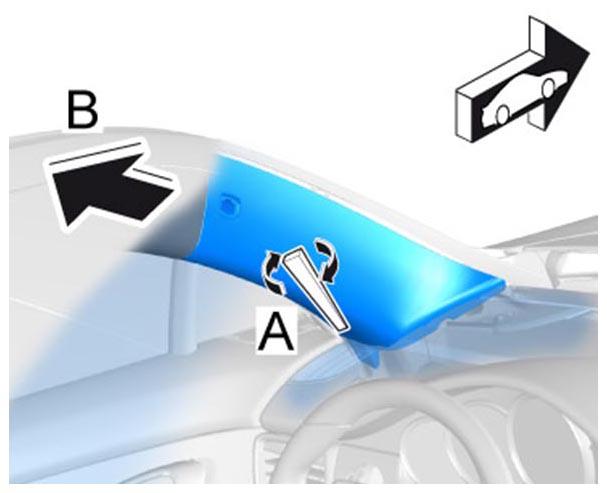

    Fig 5: Unclipping A-Pillar Trim Panel
    G09812260Courtesy of PORSCHE CARS NORTH AMERICA, INC.
