Installing Cover Under Dashboard On The Driver's Side

  1. Position cover in the footwell.
  2. Press the cover up and secure it with the guide sleeves -arrow-  .
  3. Screw in fastening screws -1-  and tighten to the specified tightening torque Tightening torque 3.2 Nm +/-0.5 Nm (+/-0.5 ftlb.)  until secure.

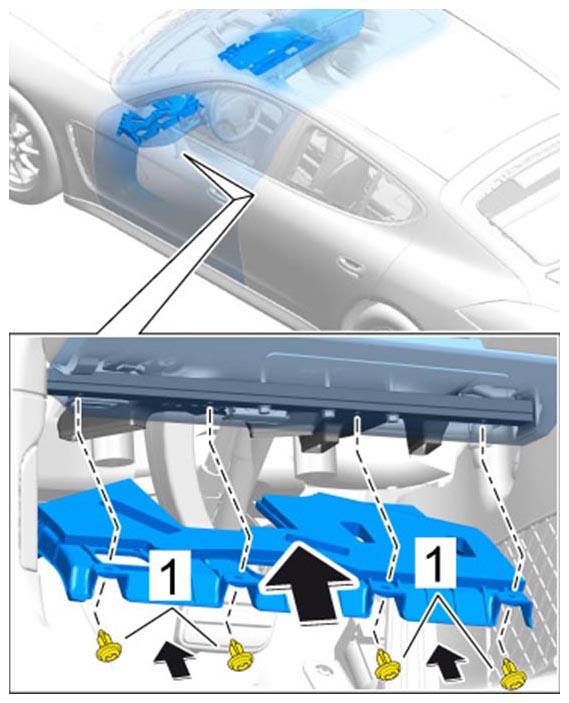

    Fig 1: Installing Cover On Driver's Side
    G09812237Courtesy of PORSCHE CARS NORTH AMERICA, INC.
